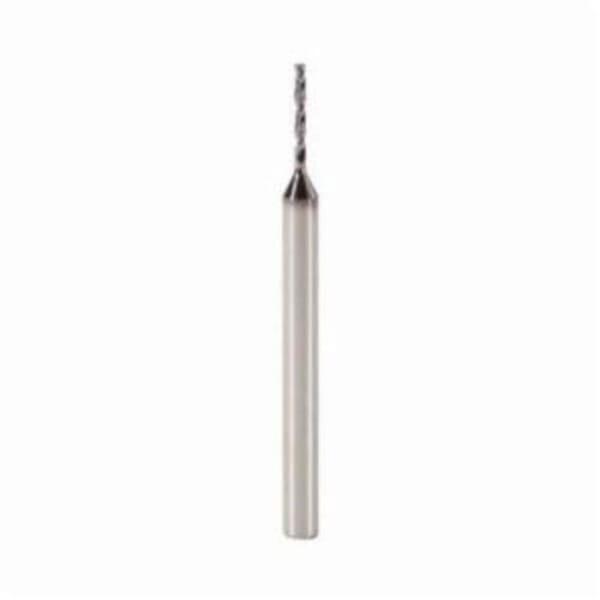

Seco Feedmax 02731657 SD206 Micro Drill, 2 mm Drill - Metric, 0.0787 in Drill - Decimal Inch, 3 mm Shank, 2 Flutes

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco Feedmax 02731657 SD206 Micro Drill, 2 mm Drill - Metric, 0.0787 in Drill - Decimal Inch, 3 mm Shank, 2 Flutes

ManufacturerSeco

Part #288563940

MFG #02731657

Seco Feedmax Micro Drill, Series: SD206, 2 mm Drill Size - Metric, 0.0787 in Drill Size - Decimal Inch, 50 mm Overall Length, 6xD Cutting Depth, 2 Flutes, Spiral Flute, 14 mm Flute Length, 3 mm Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, PVD/TiAlN+TiN Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials and Plastic

$116.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Applicable Materials: Cast Iron, Non-Ferrous Materials and Plastic

Country of Origin: CH

Cutting Depth: 6XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.0787 in

Drill Size - Metric: 2 mm

Finish: PVD/TiAlN+TiN Coated

Flute Length: 14 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 50 mm

Point Angle: 140 deg

Point Type: Self-Centering

Series: SD206

Shank Size: 3 mm

Shank Type: Cylindrical

GDG Code: B79
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications
Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN, it offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron
65 deg tool cutting edge
Spiral flutes are constructed of a higher flute angle to remove chips easier
High productivity and low cost per hole
Up to 0.7 mm/r cutting feed
Up to 220 m/min cutting speed
High hole quality with no need for centre drilling operations
High hot hardness with special TiAlN coating
Strong cutting edge
High cutting edge quality
High strength carbide rod minimises risk for breakages
Low friction coating (TiAlN) for improved chip evacuation
Protective corner chamfer
External coolant
IT9 hole tolerance
ANSI Code: SD206-2.00-12.0-3R1
ISO Code: SD206-2.00-12.0-3R1

Seco Feedmax is our latest generation of high performance solid carbide drills. They offer a unique combination of state-of-the-art carbide, coating and geometry technology.

Manufacturer Name: Seco Tools

Applicable Materials: Cast Iron, Non-Ferrous Materials and Plastic

Country of Origin: CH

Cutting Depth: 6XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.0787 in

Drill Size - Metric: 2 mm

Finish: PVD/TiAlN+TiN Coated

Flute Length: 14 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 50 mm

Point Angle: 140 deg

Point Type: Self-Centering

Series: SD206

Shank Size: 3 mm

Shank Type: Cylindrical

GDG Code: B79
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications
Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN, it offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron
65 deg tool cutting edge
Spiral flutes are constructed of a higher flute angle to remove chips easier
High productivity and low cost per hole
Up to 0.7 mm/r cutting feed
Up to 220 m/min cutting speed
High hole quality with no need for centre drilling operations
High hot hardness with special TiAlN coating
Strong cutting edge
High cutting edge quality
High strength carbide rod minimises risk for breakages
Low friction coating (TiAlN) for improved chip evacuation
Protective corner chamfer
External coolant
IT9 hole tolerance
ANSI Code: SD206-2.00-12.0-3R1
ISO Code: SD206-2.00-12.0-3R1

Seco Feedmax is our latest generation of high performance solid carbide drills. They offer a unique combination of state-of-the-art carbide, coating and geometry technology.
