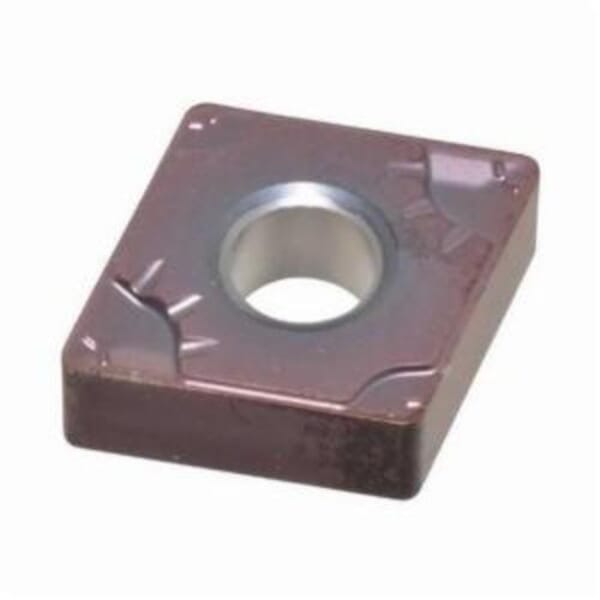

Seco 02730816 Turning Insert, ANSI Code: CNMG433-MF5 TH1000, CNMG Insert, Material Grade: H, S, 120412 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Hard Materials and Titanium/Super Alloys, Carbide, Manufacturers Grade: TH1000

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02730816 Turning Insert, ANSI Code: CNMG433-MF5 TH1000, CNMG Insert, Material Grade: H, S, 120412 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Hard Materials and Titanium/Super Alloys, Carbide, Manufacturers Grade: TH1000

ManufacturerSeco

Part #288563801

MFG #02730816

Seco Turning Insert, CNMG Insert, 120412 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MF5 Chipbreaker, 1.2 mm Corner Radius, 5.15 mm Hole Dia, Manufacturers Grade: TH1000, ANSI Code: CNMG433-MF5 TH1000, ISO Code: CNMG120412-MF5 TH1000, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hard Materials and Titanium/Super Alloys

$18.88

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CNMG433-MF5 TH1000
Chipbreaker: MF5
Corner Radius: 1.2 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlSiN Nanolaminate Coated
For Use On: Hard Materials and Titanium/Super Alloys
Hole Diameter: 5.15 mm
Included Angle: 80 deg
Inscribed Circle: 12.7 mm
Insert Size: 120412
Insert Style: CNMG
ISO Code: CNMG120412-MF5 TH1000
Manufacturer Name: Seco Tools
Manufacturers Grade: TH1000
Material: Carbide
Material Grade: H, S
Maximum Depth of Cut: 5.25 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 12
Shape: Diamond
Thickness: 4.76 mm
: Seco Turning Insert, CNMG Insert, 120412 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MF5 Chipbreaker, 1.2 mm Corner Radius, 5.15 mm Hole Dia, Manufacturers Grade: TH1000, ANSI Code: CNMG433-MF5 TH1000, ISO Code: CNMG120412-MF5 TH1000, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hard Materials and Titanium/Super Alloys
: Video Link

: Manufacturer Name: Seco Tools
ANSI Code: CNMG433-MF5 TH1000
Chipbreaker: MF5
Corner Radius: 1.2 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlSiN Nanolaminate Coated
For Use On: Hard Materials and Titanium/Super Alloys
Hole Diameter: 5.15 mm
Included Angle: 80 deg
Inscribed Circle: 12.7 mm
Insert Size: 120412
Insert Style: CNMG
ISO Code: CNMG120412-MF5 TH1000
Manufacturer Name: Seco Tools
Manufacturers Grade: TH1000
Material: Carbide
Material Grade: H, S
Maximum Depth of Cut: 5.25 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 12
Shape: Diamond
Thickness: 4.76 mm
: Seco Turning Insert, CNMG Insert, 120412 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MF5 Chipbreaker, 1.2 mm Corner Radius, 5.15 mm Hole Dia, Manufacturers Grade: TH1000, ANSI Code: CNMG433-MF5 TH1000, ISO Code: CNMG120412-MF5 TH1000, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hard Materials and Titanium/Super Alloys
: Video Link
