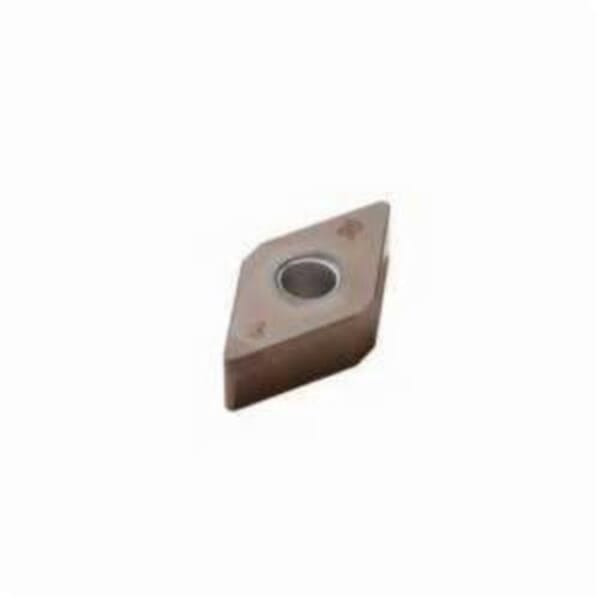

Seco Secomax 03029222 Turning Insert, ANSI Code: DNGA432S-00625-L1-WZ-B CH0550, DNGA Insert, Material Grade: H, 150408 Insert, Diamond Shape, 15 Seat, For Use On Hard Materials, PCBN, Manufacturers Grade: CH0550

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco Secomax 03029222 Turning Insert, ANSI Code: DNGA432S-00625-L1-WZ-B CH0550, DNGA Insert, Material Grade: H, 150408 Insert, Diamond Shape, 15 Seat, For Use On Hard Materials, PCBN, Manufacturers Grade: CH0550

ManufacturerSeco

Part #288557310

MFG #03029222

Seco Secomax Turning Insert, DNGA Insert, 150408 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, WZ Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturers Grade: CH0550, ANSI Code: DNGA432S-00625-L1-WZ-B CH0550, ISO Code: DNGA150408S-01525L1WZB CH0550, 55 deg Included Angle, 0 deg Relief Angle, PCBN, PVD-TiAlCrN Coated, Material Grade: H, For Use On: Hard Materials

$108.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: DNGA432S-00625-L1-WZ-B CH0550
Chipbreaker: WZ
Corner Radius: 0.8 mm
Country of Origin: SE
Finish: PVD-TiAlCrN Coated
For Use On: Hard Materials
Hole Diameter: 5.15 mm
Included Angle: 55 deg
Inscribed Circle: 12.7 mm
Insert Size: 150408
Insert Style: DNGA
ISO Code: DNGA150408S-01525L1WZB CH0550
Manufacturer Name: Seco Tools
Manufacturers Grade: CH0550
Material: PCBN
Material Grade: H
Maximum Depth of Cut: 5.25 mm
Relief Angle: 0 deg
Seat Size: 15
Shape: Diamond
Thickness: 4.76 mm
: Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.
