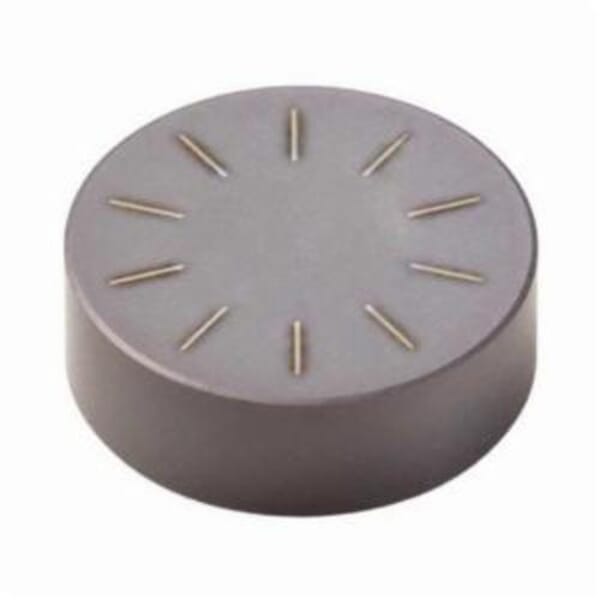

Seco Secomax 02691878 Turning Insert, ANSI Code: RNGN22S-00625 CBN060K, RNGN Insert, Material Grade: H, 060300 Insert, Round Shape, 06 Seat, For Use On Hard Materials, PCBN, Manufacturers Grade: CBN060K

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco Secomax 02691878 Turning Insert, ANSI Code: RNGN22S-00625 CBN060K, RNGN Insert, Material Grade: H, 060300 Insert, Round Shape, 06 Seat, For Use On Hard Materials, PCBN, Manufacturers Grade: CBN060K

ManufacturerSeco

Part #288554032

MFG #02691878

Seco Secomax Turning Insert, RNGN Insert, 060300 Insert, Round, 2.9 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 06 Seat, Manufacturers Grade: CBN060K, ANSI Code: RNGN22S-00625 CBN060K, ISO Code: RNGN060300S-01525 CBN060K, 0 deg Relief Angle, PCBN, PVD-TiAlSiN Coated, Material Grade: H, For Use On: Hard Materials

$174.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: RNGN22S-00625 CBN060K
Country of Origin: SE
Finish: PVD-TiAlSiN Coated
For Use On: Hard Materials
Inscribed Circle: 6.35 mm
Insert Size: 060300
Insert Style: RNGN
ISO Code: RNGN060300S-01525 CBN060K
Manufacturer Name: Seco Tools
Manufacturers Grade: CBN060K
Material: PCBN
Material Grade: H
Maximum Depth of Cut: 2.9 mm
Relief Angle: 0 deg
Seat Size: 06
Shape: Round
Thickness: 3.18 mm
: Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.
