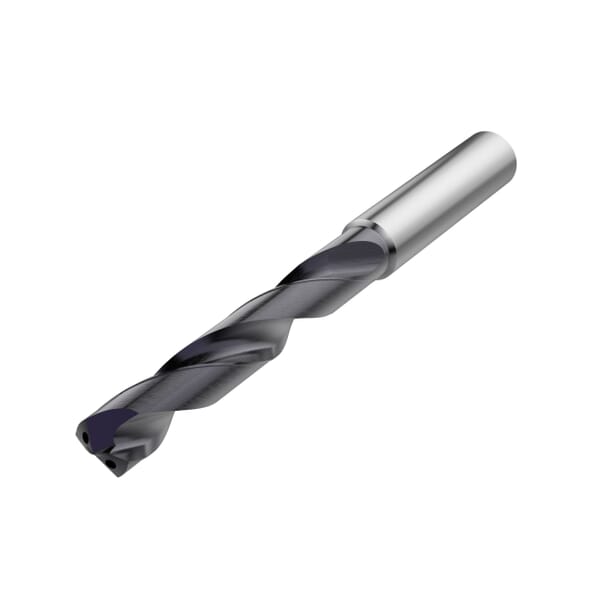

Seco Feedmax 03046168 SD205A-P Single Diameter Jobber Drill Bit With 0.03 in Corner Radius, 5.2 mm Drill - Metric, 0.2047 in Drill - Decimal Inch, 140 deg Point, Solid Carbide, PVD-TiAlN Coated

ManufacturerSeco

Part #288546168

MFG #03046168

Seco Feedmax Jobber Drill Bit, Single Diameter, Series: SD205A-P, Metric, 5.2 mm Drill - Metric, 0.2047 in Drill - Decimal Inch, 82 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 44 mm Flute Length, 6 mm Dia x 36 mm L Shank, Cylindrical Shank, 140 deg Point, Cone Relief Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Yes Through Coolant, Solid Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron and Steel

$176.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Applicable Materials: Cast Iron and Steel

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Metric

Drill Size - Decimal Inch: 0.2047 in

Drill Size - Metric: 5.2 mm

Finish: PVD-TiAlN Coated

Flute Length: 44 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 82 mm

Point Angle: 140 deg

Point Type: Cone Relief

Series: SD205A-P

Shank Size: 6 mm Dia x 36 mm L

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Type: Single Diameter

MQL compatible shanks
Increased drilling productivity through higher cutting speeds
Longer tool life and reduced part costs
Efficient chip evacuation
Higher per-drill output
Process predictability and reliability
Good hole tolerance (IT8) and excellent surface finishes

Boost hole making performance in ISO P materials when you switch to Secos new solid carbide Feedmax-P drill and experience increased productivity up to 35% as well as longer tool life, all thanks to the combination of a new geometry and an advanced coating enhanced chip evacuation ensures application security, while also maintaining high productivity. Drill more holes in a shorter amount of time and use fewer drills to do so with Feedmax-P drills. The drills feature strong straight cutting edges with coolant holes close by for pinpointed cutting edge cooling, and narrow land margins also help minimize the effects of heat on the drills. New Feedmax-P flute designs protect drill point corners and provide exceptional chip control and evacuation. The combined design features of the Feedmax-P drills optimize them for steel and cast iron workpiece applications. With a new dark colored TiAlN coating the Feedmax-P allows you to use your machine tools to their full drilling potential. Thanks to the drills strong point geometry and its modern coating cutting speeds of up to 190 m/min in SMG P5 are possible without sacrificing tool life.

DIN 6537A
