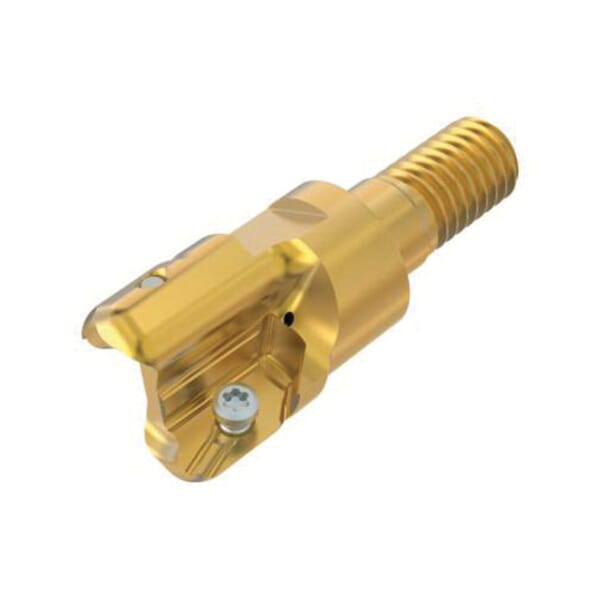

Seco 03245589 2-Flute Metric Indexable Copy End Mill With Through Coolant, ANSI Code: R217.97-0816.RE-X08.2A, R217.97 Toolholder, M8 Modular Connection Thread

ManufacturerSeco

Part #288545589

MFG #03245589

Seco Indexable Copy End Mill, 2-Flute Metric, 16 mm Cutting Dia, 100 mm Overall Length, 8 mm Maximum Depth of Cut, XPKX08 Insert, 2 Inserts, Insert Compatibility: XP..08.., 23 mm Head Length, 8 mm Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, M8 Modular Connection Thread, ANSI Code: R217.97-0816.RE-X08.2A, ISO Code: R217.97-0816.RE-X08.2A, Steel, R217.97 Toolholder

$415.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: R217.97-0816.RE-X08.2A
Country of Origin: FR
Cutting Angle: 90 deg
Cutting Diameter: 16 mm
Cutting Direction: Right Hand
Head Length: 23 mm
Insert Compatibility: XP..08..
Insert Style: XPKX08
ISO Code: R217.97-0816.RE-X08.2A
Manufacturer Name: Seco Tools
Material: Steel
Maximum Depth of Cut: 8 mm
Modular Connection Thread Size: M8
Number of Inserts: 2
Overall Length: 100 mm
Shank Diameter: 8 mm
Toolholder Type: R217.97
Type: 2-Flute Metric
: Seco Indexable Copy End Mill, 2-Flute Metric, 16 mm Cutting Dia, 100 mm Overall Length, 8 mm Maximum Depth of Cut, XPKX08 Insert, 2 Inserts, Insert Compatibility: XP..08.., 23 mm Head Length, 8 mm Shank Dia, Right Hand Cutting, 90 deg Cutting Angle, M8 Modular Connection Thread, ANSI Code: R217.97-0816.RE-X08.2A, ISO Code: R217.97-0816.RE-X08.2A, Steel, R217.97 Toolholder
