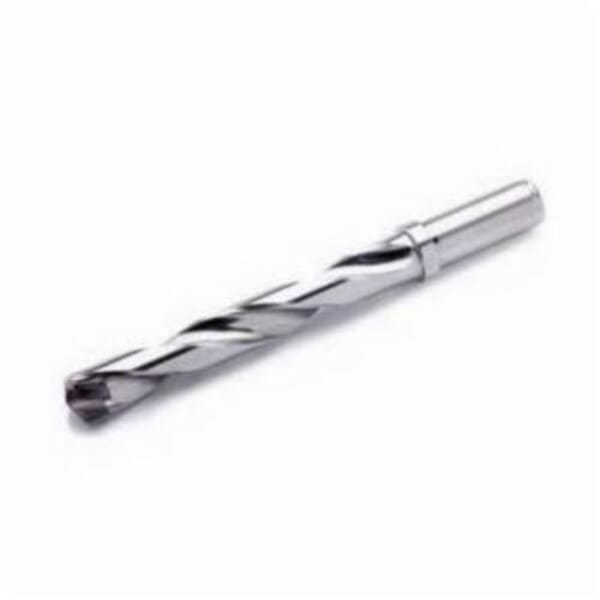

Seco 02623611 Crownloc Plus Right Hand Exchangeable Tip Drill, 19 to 19.99 mm Drill, SD400 Insert, 7.165 in OAL, 5XD Drill Depth by Dia Ratio, 3/4 in Dia Shank, SD405 Toolholder

ManufacturerSeco

Part #288540174

MFG #02623611

Seco Exchangeable Tip Drill, Right Hand, Series: Crownloc Plus, 19 to 19.99 mm Drill, Cylindrical Shank, 3/4 in Shank Dia, 1.969 in Shank Length, 4.449 in Flute Length, 7.165 in Overall Length, SD405 Toolholder Type, 140 deg Point, 100 mm Maximum Drill Depth, 5XD Drill Depth by Dia Ratio, SD400 Insert, Yes Through Coolant (Yes/No)

$572.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Country of Origin: SE

Drill Depth by Diameter Ratio: 5XD

Drill Size: 19 to 19.99 mm

Flute Length: 4.449 in

Insert Style: SD400

Manufacturer Name: Seco Tools

Maximum Drill Depth: 100 mm

Overall Length: 7.165 in

Point Angle: 140 deg

Series: Crownloc Plus

Shank Diameter: 3/4 in

Shank Length: 1.969 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: SD405

Type: Right Hand

Exchangeable carbide tips
Geometries for different workpiece materials
No regrinding

Crownloc Plus is a new generation of Seco drills with exchangeable crowns. Featuring a new geometry, coating and locking interface, Crownloc Plus improves chip evacuation and wear resistance in a variety of materials. Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body. The drills crowns have a new optimized geometry for improved chip formation and enhanced entering capability. The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micrograin substrate serve to increase toughness and wear resistance, while reducing the potential for edge build up. Crownloc Plus provides you with high productivity, excellent chip evacuation, flexibility and easy handling. These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

Video Link

Manufacturer Name: Seco Tools

Country of Origin: SE

Drill Depth by Diameter Ratio: 5XD

Drill Size: 19 to 19.99 mm

Flute Length: 4.449 in

Insert Style: SD400

Manufacturer Name: Seco Tools

Maximum Drill Depth: 100 mm

Overall Length: 7.165 in

Point Angle: 140 deg

Series: Crownloc Plus

Shank Diameter: 3/4 in

Shank Length: 1.969 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: SD405

Type: Right Hand

Exchangeable carbide tips
Geometries for different workpiece materials
No regrinding

Crownloc Plus is a new generation of Seco drills with exchangeable crowns. Featuring a new geometry, coating and locking interface, Crownloc Plus improves chip evacuation and wear resistance in a variety of materials. Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body. The drills crowns have a new optimized geometry for improved chip formation and enhanced entering capability. The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micrograin substrate serve to increase toughness and wear resistance, while reducing the potential for edge build up. Crownloc Plus provides you with high productivity, excellent chip evacuation, flexibility and easy handling. These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

Video Link
