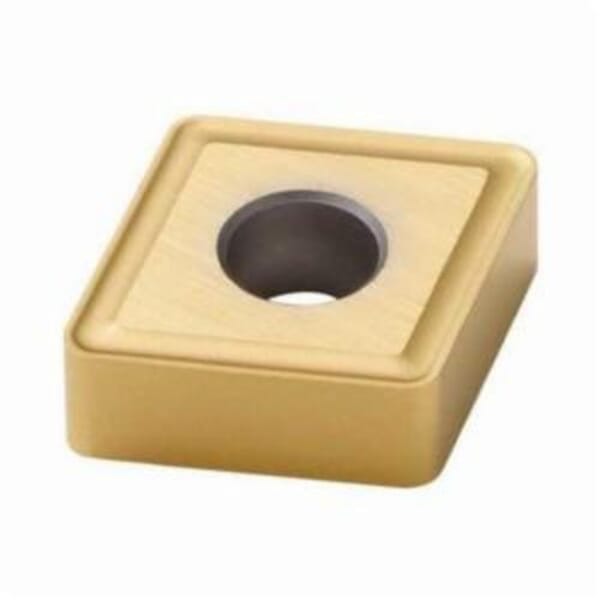

Seco 02615961 Turning Insert, ANSI Code: CNMG643-MR4 TS2500, CNMG Insert, Material Grade: S, 190612 Insert, Diamond Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturers Grade: TS2500

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02615961 Turning Insert, ANSI Code: CNMG643-MR4 TS2500, CNMG Insert, Material Grade: S, 190612 Insert, Diamond Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturers Grade: TS2500

ManufacturerSeco

Part #288539044

MFG #02615961

Seco Turning Insert, CNMG Insert, 190612 Insert, Diamond, 12 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, Negative Rake, MR4 Chipbreaker, 1.2 mm Corner Radius, 7.92 mm Hole Dia, Manufacturers Grade: TS2500, ANSI Code: CNMG643-MR4 TS2500, ISO Code: CNMG190612-MR4 TS2500, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: S, For Use On: Super Alloys and Titanium

$41.35

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CNMG643-MR4 TS2500
Chipbreaker: MR4
Corner Radius: 1.2 mm
Country of Origin: CZ, IN
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated
For Use On: Super Alloys and Titanium
Hole Diameter: 7.92 mm
Included Angle: 80 deg
Inscribed Circle: 19.05 mm
Insert Size: 190612
Insert Style: CNMG
ISO Code: CNMG190612-MR4 TS2500
Manufacturer Name: Seco Tools
Manufacturers Grade: TS2500
Material: Carbide
Material Grade: S
Maximum Depth of Cut: 12 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 19
Shape: Diamond
Thickness: 6.35 mm
: Seco Turning Insert, CNMG Insert, 190612 Insert, Diamond, 12 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, Negative Rake, MR4 Chipbreaker, 1.2 mm Corner Radius, 7.92 mm Hole Dia, Manufacturers Grade: TS2500, ANSI Code: CNMG643-MR4 TS2500, ISO Code: CNMG190612-MR4 TS2500, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: S, For Use On: Super Alloys and Titanium
