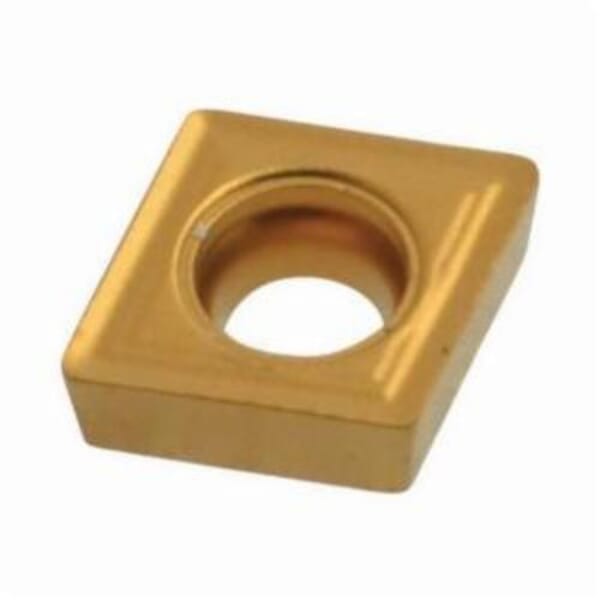

Seco 02615875 Turning Insert, ANSI Code: CCMT32.51-F2 TS2000, CCMT Insert, Material Grade: M, S, 09T304 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: TS2000

ManufacturerSeco

Part #288538944

MFG #02615875

Seco Turning Insert, CCMT Insert, 09T304 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, F2 Chipbreaker, 0.4 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: TS2000, ANSI Code: CCMT32.51-F2 TS2000, ISO Code: CCMT09T304-F2 TS2000, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys

$14.95

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CCMT32.51-F2 TS2000
Chipbreaker: F2
Corner Radius: 0.4 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated
For Use On: Stainless Steel and Titanium/Super Alloys
Hole Diameter: 4.5 mm
Included Angle: 80 deg
Inscribed Circle: 9.5 mm
Insert Size: 09T304
Insert Style: CCMT
ISO Code: CCMT09T304-F2 TS2000
Manufacturer Name: Seco Tools
Manufacturers Grade: TS2000
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 3.5 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 09
Shape: Diamond
Thickness: 3.97 mm
: Seco Turning Insert, CCMT Insert, 09T304 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, F2 Chipbreaker, 0.4 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: TS2000, ANSI Code: CCMT32.51-F2 TS2000, ISO Code: CCMT09T304-F2 TS2000, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys
