Seco 03134319 Perfomax Center Indexable Drill Insert, ANSI Code: SPGX0502-MC, Squared Shape, 0502 Insert, SPGX Insert, 2.4 mm THK, 5.6 mm Inscribed Circle, For Use On Stainless Steel, Super Alloys and Titanium, Manufacturers Grade: DS4050

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

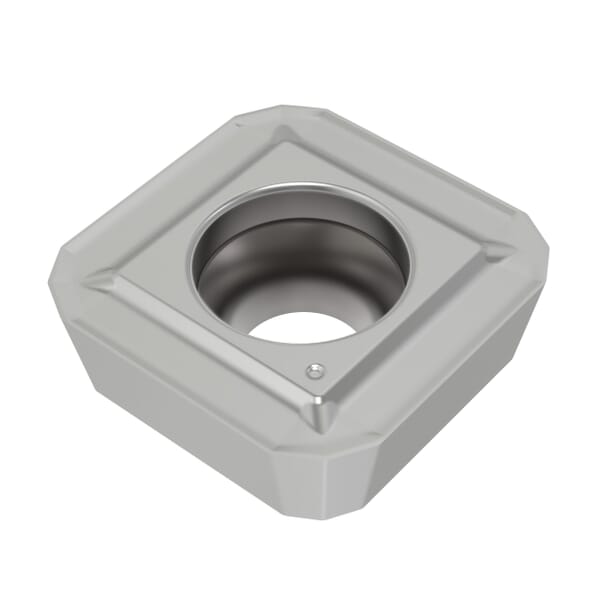

Seco 03134319 Perfomax Center Indexable Drill Insert, ANSI Code: SPGX0502-MC, Squared Shape, 0502 Insert, SPGX Insert, 2.4 mm THK, 5.6 mm Inscribed Circle, For Use On Stainless Steel, Super Alloys and Titanium, Manufacturers Grade: DS4050

ManufacturerSeco

Part #288534319

MFG #03134319

Seco Indexable Drill Insert, Center, Series: Perfomax, SPGX Insert, 0502 Insert, Squared Shape, 5.6 mm Inscribed Circle, 2.4 mm Thickness, 5.6 mm Width, 5.6 mm Length, MC Chipbreaker, Manufacturers Grade: DS4050, 90 deg Included Angle, ANSI Code: SPGX0502-MC, Right/Left Hand of Insert, For Use On: Stainless Steel, Super Alloys and Titanium, Carbide, PVD-TiAlN+NbN Coated, Material Grade: C3, C4

$21.23

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: SPGX0502-MC

Chipbreaker: MC

Country of Origin: SE

Finish: PVD-TiAlN+NbN Coated

For Use On: Stainless Steel, Super Alloys and Titanium

Hand of Insert: Right/Left

Included Angle: 90 deg

Inscribed Circle: 5.6 mm

Insert Size: 0502

Insert Style: SPGX

Length: 5.6 mm

Manufacturer Name: Seco Tools

Manufacturers Grade: DS4050

Material: Carbide

Material Grade: C3, C4

Series: Perfomax

Shape: Squared

Thickness: 2.4 mm

Type: Center

Width: 5.6 mm

Features strong square inserts with four cutting edges, high drill body stability, a low-friction coating, unique chip flute design and inserts with modern grades that use Duratomic technology

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low-friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications. Perfomax inserts are available in three grades - DP3000, DP2000 and T250D - featuring Secos Duratomic technology, which provides the grade with a thicker coating, makes it extremely resistant to heat and enables drilling at high speeds in steel and cast iron.

Catalog

Manufacturer Name: Seco Tools

ANSI Code: SPGX0502-MC

Chipbreaker: MC

Country of Origin: SE

Finish: PVD-TiAlN+NbN Coated

For Use On: Stainless Steel, Super Alloys and Titanium

Hand of Insert: Right/Left

Included Angle: 90 deg

Inscribed Circle: 5.6 mm

Insert Size: 0502

Insert Style: SPGX

Length: 5.6 mm

Manufacturer Name: Seco Tools

Manufacturers Grade: DS4050

Material: Carbide

Material Grade: C3, C4

Series: Perfomax

Shape: Squared

Thickness: 2.4 mm

Type: Center

Width: 5.6 mm

Features strong square inserts with four cutting edges, high drill body stability, a low-friction coating, unique chip flute design and inserts with modern grades that use Duratomic technology

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low-friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications. Perfomax inserts are available in three grades - DP3000, DP2000 and T250D - featuring Secos Duratomic technology, which provides the grade with a thicker coating, makes it extremely resistant to heat and enables drilling at high speeds in steel and cast iron.

Catalog
