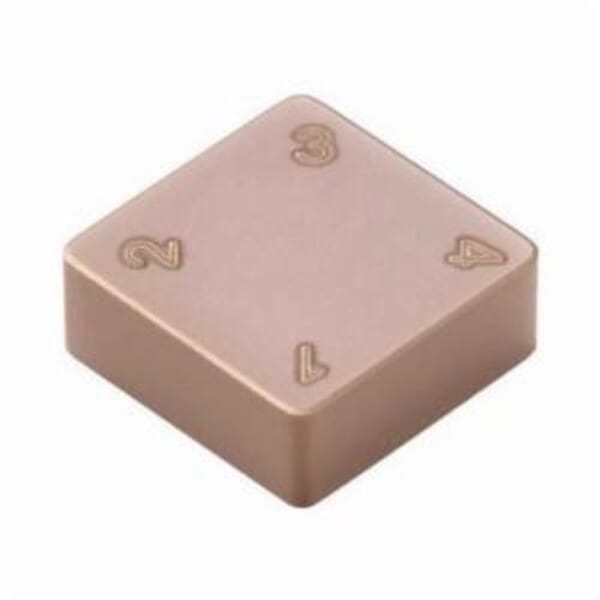

Seco Secomax 02546500 Turning Insert, ANSI Code: SNMN222E CBN400C, SNMN Insert, Material Grade: K, 060308 Insert, Squared Shape, 06 Seat, For Use On Cast Iron, PCBN, Manufacturers Grade: CBN400C

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco Secomax 02546500 Turning Insert, ANSI Code: SNMN222E CBN400C, SNMN Insert, Material Grade: K, 060308 Insert, Squared Shape, 06 Seat, For Use On Cast Iron, PCBN, Manufacturers Grade: CBN400C

ManufacturerSeco

Part #288529364

MFG #02546500

Seco Secomax Turning Insert, SNMN Insert, 060308 Insert, Squared, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 6.35 mm Width, 6.35 mm Length, 06 Seat, 0.8 mm Corner Radius, Manufacturers Grade: CBN400C, ANSI Code: SNMN222E CBN400C, ISO Code: SNMN060308E CBN400C, 90 deg Included Angle, 0 deg Relief Angle, PCBN, PVD-TiSiN Coated, Material Grade: K, For Use On: Cast Iron

$165.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: SNMN222E CBN400C
Corner Radius: 0.8 mm
Country of Origin: SE
Finish: PVD-TiSiN Coated
For Use On: Cast Iron
Included Angle: 90 deg
Inscribed Circle: 6.35 mm
Insert Size: 060308
Insert Style: SNMN
ISO Code: SNMN060308E CBN400C
Length: 6.35 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CBN400C
Material: PCBN
Material Grade: K
Relief Angle: 0 deg
Seat Size: 06
Shape: Squared
Thickness: 3.18 mm
Width: 6.35 mm
: Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.
