Seco JABRO HPM 03127383 JHP994/HPM Chamfer Tip High Performance Square End Mill, 8 mm Dia Cutter, 18 mm Length of Cut, 4 Flutes, 8 mm Dia Shank, 69 mm OAL, PVD/Polished HXT Coated

ManufacturerSeco

Part #288527383

MFG #03127383

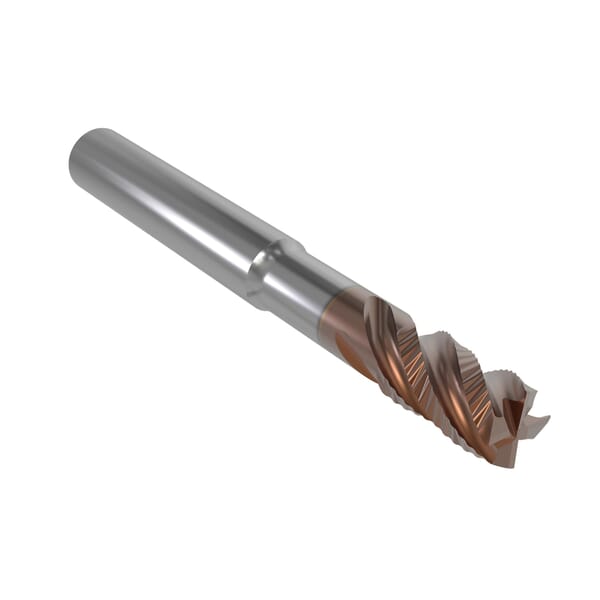

Seco JABRO HPM End Mill, Chamfer Tip High Performance Square End, Series: JHP994/HPM, 8 mm Diameter Cutter, 69 mm Overall Length, 18 mm Length of Cut, 4 Flutes, Spiral Flute, 8 mm Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Cylindrical Shank, ANSI Code: JHP994080E3C.0Z4-HXT, ISO Code: JHP994080E3C.0Z4-HXT, Solid Carbide, PVD/Polished HXT Coated

$140.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: JHP994080E3C.0Z4-HXT

Country of Origin: NL

Cutter Diameter: 8 mm

Cutting Direction: Right Hand

Finish: PVD/Polished HXT Coated

Flute Type: Spiral

Helix Angle: 38 deg

ISO Code: JHP994080E3C.0Z4-HXT

Length of Cut: 18 mm

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 69 mm

Series: JHP994/HPM

Shank Diameter: 8 mm

Shank Type: Cylindrical

Type: Chamfer Tip High Performance Square End

Shorter part cycle times
Superior surface finishes
Application versatility
Process stability and consistency
Longer tool life
Roughing profile and neck reduction

Significantly boost knee implant machining speeds to shorten part cycle times by as much as 50% with Secos new JABRO CoCr (cobalt chrome) range of solid carbide cutting tools. The industrys first dedicated product line for knee implant machining, this new range includes 9 new advanced geometries and 39 tools, most of which are positioned in the JH Tornado high speed cutting family. These tools combine high speed and high feed machining strategies and are all designed for tibial tray and femoral knee implant parts. The range reduces, if not eliminates, your need for secondary grinding operations, also known as polishing or fine finishing. Exceptional part surface finishes and long tool life result from the tools continuous grades and optimized coatings. You can also maximize machining performance for other medical implant components such as those for hip replacements, bone plates and many others because the new dedicated tooling can be used for machining Ti6Al4V ISO-S12 (3D printed) parts as well.

Catalog

Manufacturer Name: Seco Tools

ANSI Code: JHP994080E3C.0Z4-HXT

Country of Origin: NL

Cutter Diameter: 8 mm

Cutting Direction: Right Hand

Finish: PVD/Polished HXT Coated

Flute Type: Spiral

Helix Angle: 38 deg

ISO Code: JHP994080E3C.0Z4-HXT

Length of Cut: 18 mm

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 69 mm

Series: JHP994/HPM

Shank Diameter: 8 mm

Shank Type: Cylindrical

Type: Chamfer Tip High Performance Square End

Shorter part cycle times
Superior surface finishes
Application versatility
Process stability and consistency
Longer tool life
Roughing profile and neck reduction

Significantly boost knee implant machining speeds to shorten part cycle times by as much as 50% with Secos new JABRO CoCr (cobalt chrome) range of solid carbide cutting tools. The industrys first dedicated product line for knee implant machining, this new range includes 9 new advanced geometries and 39 tools, most of which are positioned in the JH Tornado high speed cutting family. These tools combine high speed and high feed machining strategies and are all designed for tibial tray and femoral knee implant parts. The range reduces, if not eliminates, your need for secondary grinding operations, also known as polishing or fine finishing. Exceptional part surface finishes and long tool life result from the tools continuous grades and optimized coatings. You can also maximize machining performance for other medical implant components such as those for hip replacements, bone plates and many others because the new dedicated tooling can be used for machining Ti6Al4V ISO-S12 (3D printed) parts as well.
