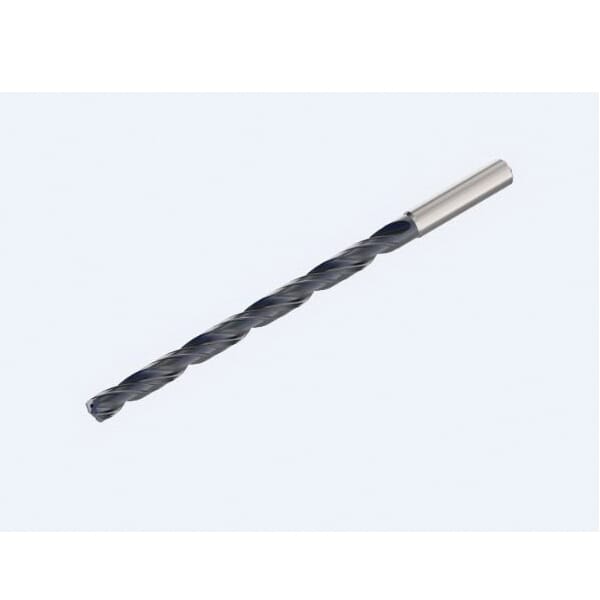

Seco 03323706 SD1112A Imperial Universal Extension Length Drill Bit, 5/32 in Drill - Fraction, 3.969 mm Drill - Metric, 0.156 in Drill - Decimal Inch, 4.016 in OAL, Solid Carbide

ManufacturerSeco

Part #288523706

MFG #03323706

Seco Extension Length Drill Bit, Imperial Universal, Series: SD1112A, 5/32 in Drill Size - Fraction, 3.969 mm Drill Size - Metric, 0.156 in Drill Size - Decimal Inch, 4.016 in Overall Length, 12xD Cutting Depth, 2 Flutes, Spiral Flute, 2.52 in Flute Length, 0.236 in Dia x 1.417 in L Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, TiAlN Coated, Applicable Materials: Cast Iron, Hard Materials, Non-Ferrous Metals, Steel and Stainless Steel, Specifications Met: DIN 6537A, Yes Through Coolant (Yes/No)

$170.83

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
Applicable Materials: Cast Iron, Hard Materials, Non-Ferrous Metals, Steel and Stainless Steel
Country of Origin: CN
Cutting Depth: 12XD
Cutting Direction: Right Hand
Cutting Edge Material: Solid Carbide
Drill Size - Decimal Inch: 0.156 in
Drill Size - Fraction: 5/32 in
Drill Size - Metric: 3.969 mm
Finish: TiAlN Coated
Flute Length: 2.52 in
Flute Type: Spiral
Manufacturer Name: Seco Tools
Material: Solid Carbide
Number of Flutes: 2
Overall Length: 4.016 in
Point Angle: 140 deg
Point Type: Self-Centering
Series: SD1112A
Shank Size: 0.236 in Dia x 1.417 in L
Shank Type: Cylindrical
Specifications Met: DIN 6537A
Through Coolant (Yes/No): Yes
Type: Imperial Universal
: PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
: Seco universal is a multi-purpose general performance solid carbide drill, that can be used in a wide range of materials and applications in all industry segments. Thanks to the design with a strong self centering 140 deg drill point, polished chip flutes and the excellent quality of the drill - high capacity utilization, application security and versatility is provided at a very low cost. With Seco universal stock holding cost can be reduced and greater machining flexibility is offered, leading to reduced set-up time. Seco universal is an alternative to Seco Feedmax in operations when versatility, flexibility and reduced stock holding cost are the main targets.

: Manufacturer Name: Seco Tools
Applicable Materials: Cast Iron, Hard Materials, Non-Ferrous Metals, Steel and Stainless Steel
Country of Origin: CN
Cutting Depth: 12XD
Cutting Direction: Right Hand
Cutting Edge Material: Solid Carbide
Drill Size - Decimal Inch: 0.156 in
Drill Size - Fraction: 5/32 in
Drill Size - Metric: 3.969 mm
Finish: TiAlN Coated
Flute Length: 2.52 in
Flute Type: Spiral
Manufacturer Name: Seco Tools
Material: Solid Carbide
Number of Flutes: 2
Overall Length: 4.016 in
Point Angle: 140 deg
Point Type: Self-Centering
Series: SD1112A
Shank Size: 0.236 in Dia x 1.417 in L
Shank Type: Cylindrical
Specifications Met: DIN 6537A
Through Coolant (Yes/No): Yes
Type: Imperial Universal
: PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
: Seco universal is a multi-purpose general performance solid carbide drill, that can be used in a wide range of materials and applications in all industry segments. Thanks to the design with a strong self centering 140 deg drill point, polished chip flutes and the excellent quality of the drill - high capacity utilization, application security and versatility is provided at a very low cost. With Seco universal stock holding cost can be reduced and greater machining flexibility is offered, leading to reduced set-up time. Seco universal is an alternative to Seco Feedmax in operations when versatility, flexibility and reduced stock holding cost are the main targets.
