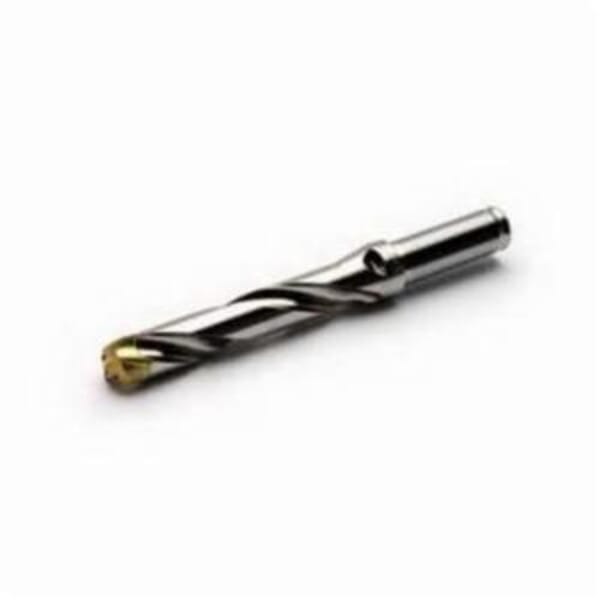

Seco 02462850 Crownloc Right Hand Exchangeable Tip Drill, 24 to 25.99 mm Drill, SD100 Insert, 214.5 mm OAL, 5XD Drill Depth by Dia Ratio, 25 mm Dia Shank, SD105 Toolholder

ManufacturerSeco

Part #288520685

MFG #02462850

Seco Exchangeable Tip Drill, Right Hand, Series: Crownloc, 24 to 25.99 mm Drill, ISO 9766/Weldon Shank, 25 mm Shank Diameter, 56 mm Shank Length, 138.5 mm Flute Length, 214.5 mm Overall Length, SD105 Toolholder, 140 deg Point, 125 mm Maximum Drill Depth, 5XD Drill Depth by Diameter Ratio, SD100 Insert, Yes Through Coolant

$786.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Country of Origin: SE

Drill Depth by Diameter Ratio: 5XD

Drill Size: 24 to 25.99 mm

Flute Length: 138.5 mm

Insert Style: SD100

Manufacturer Name: Seco Tools

Maximum Drill Depth: 125 mm

Overall Length: 214.5 mm

Point Angle: 140 deg

Series: Crownloc

Shank Diameter: 25 mm

Shank Length: 56 mm

Shank Type: ISO 9766/Weldon

Through Coolant (Yes/No): Yes

Toolholder Type: SD105

Type: Right Hand

Exchangeable carbide tips
Geometries for different workpiece materials
No regrinding

ISO 5414|DIN 60880|DIN 1835B

Crownloc is a range of exchangeable tip drills designed to offer high-quality holes at a lower cost. Matching the quality of high precision drills, Crownloc uses replaceable crowns to eliminate the need for and cost of regrinding. This guarantees consistently higher performance and tool life while also reducing the number of drills required in inventory. Crownloc features a unique clamping design with a precision ground interface of interlocking V-grooves to allow high cutting speeds and ensure rigidity and exact repeatability of positioning of each crown. Long land margins provide excellent guidance to ensure high hole quality and self-centering geometry eliminates the need for center drilling operations. Double coolant holes through the crown permit a high volume of coolant to reach the cutting edges. The result is safer chip evacuation and longer tool life.
