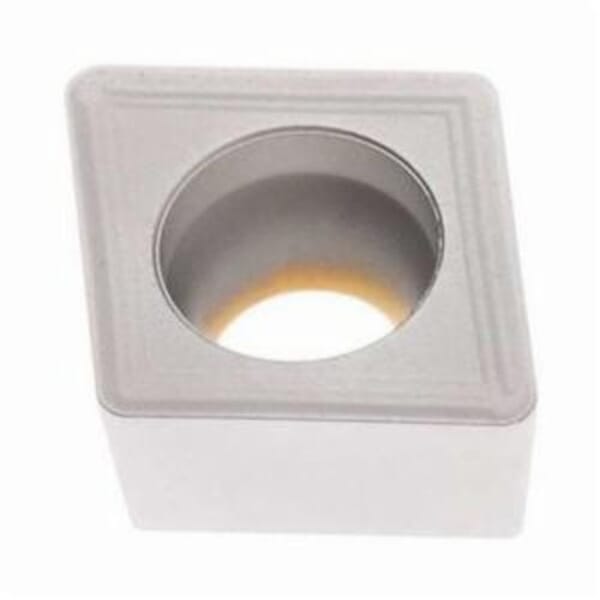

Seco 02960835 Turning Insert, ANSI Code: CCMT32.53-M3 TP1501, CCMT Insert, Material Grade: P, 09T312 Insert, Diamond Shape, 09 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1501

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02960835 Turning Insert, ANSI Code: CCMT32.53-M3 TP1501, CCMT Insert, Material Grade: P, 09T312 Insert, Diamond Shape, 09 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1501

ManufacturerSeco

Part #288519366

MFG #02960835

Seco Turning Insert, CCMT Insert, 09T312 Insert, Diamond Shape, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Negative/Positive Rake, M3 Chipbreaker, 1.2 mm Corner Radius, 4.5 mm Diameter Hole, Manufacturers Grade: TP1501, ANSI Code: CCMT32.53-M3 TP1501, ISO Code: CCMT09T312-M3 TP1501, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

$14.58

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CCMT32.53-M3 TP1501
Chipbreaker: M3
Corner Radius: 1.2 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3 Coated
For Use On: Steel
Hole Diameter: 4.5 mm
Included Angle: 80 deg
Inscribed Circle: 9.5 mm
Insert Size: 09T312
Insert Style: CCMT
ISO Code: CCMT09T312-M3 TP1501
Manufacturer Name: Seco Tools
Manufacturers Grade: TP1501
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 3.5 mm
Rake: Negative/Positive
Relief Angle: 7 deg
Seat Size: 09
Shape: Diamond
Thickness: 3.97 mm
: Seco Turning Insert, CCMT Insert, 09T312 Insert, Diamond Shape, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Negative/Positive Rake, M3 Chipbreaker, 1.2 mm Corner Radius, 4.5 mm Diameter Hole, Manufacturers Grade: TP1501, ANSI Code: CCMT32.53-M3 TP1501, ISO Code: CCMT09T312-M3 TP1501, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

: Manufacturer Name: Seco Tools
ANSI Code: CCMT32.53-M3 TP1501
Chipbreaker: M3
Corner Radius: 1.2 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3 Coated
For Use On: Steel
Hole Diameter: 4.5 mm
Included Angle: 80 deg
Inscribed Circle: 9.5 mm
Insert Size: 09T312
Insert Style: CCMT
ISO Code: CCMT09T312-M3 TP1501
Manufacturer Name: Seco Tools
Manufacturers Grade: TP1501
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 3.5 mm
Rake: Negative/Positive
Relief Angle: 7 deg
Seat Size: 09
Shape: Diamond
Thickness: 3.97 mm
: Seco Turning Insert, CCMT Insert, 09T312 Insert, Diamond Shape, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Negative/Positive Rake, M3 Chipbreaker, 1.2 mm Corner Radius, 4.5 mm Diameter Hole, Manufacturers Grade: TP1501, ANSI Code: CCMT32.53-M3 TP1501, ISO Code: CCMT09T312-M3 TP1501, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
