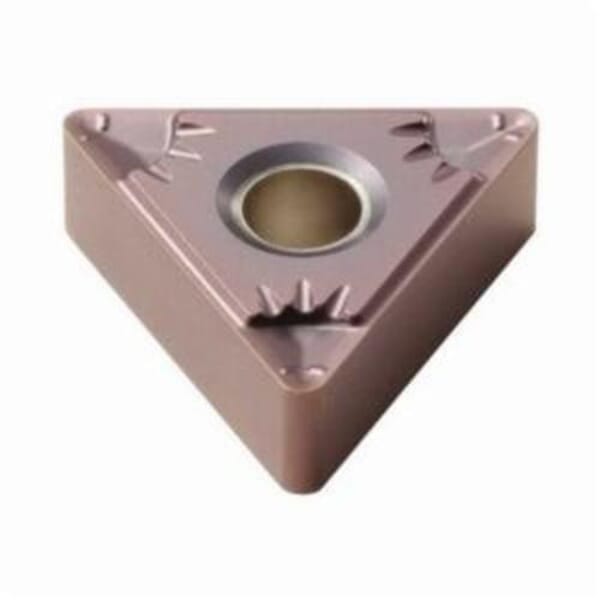

Seco 02771078 Turning Insert, ANSI Code: TNMG332-MF5 TH1000, TNMG Insert, Material Grade: H, S, 160408 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Hardened Steels, Super Alloys and Titanium, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02771078 Turning Insert, ANSI Code: TNMG332-MF5 TH1000, TNMG Insert, Material Grade: H, S, 160408 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Hardened Steels, Super Alloys and Titanium, Carbide

ManufacturerSeco

Part #288518159

MFG #02771078

Seco Turning Insert, TNMG Insert, 160408 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16.5 mm Length, 16 Seat, Negative Rake, MF5 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: TH1000, ANSI Code: TNMG332-MF5 TH1000, ISO Code: TNMG160408-MF5 TH1000, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hardened Steels, Super Alloys and Titanium

$16.68

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: TNMG332-MF5 TH1000
Chipbreaker: MF5
Corner Radius: 0.8 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlSiN Nanolaminate Coated
For Use On: Hardened Steels, Super Alloys and Titanium
Hole Diameter: 3.81 mm
Included Angle: 60 deg
Inscribed Circle: 9.52 mm
Insert Size: 160408
Insert Style: TNMG
ISO Code: TNMG160408-MF5 TH1000
Length: 16.5 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: TH1000
Material: Carbide
Material Grade: H, S
Maximum Depth of Cut: 3.75 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 16
Shape: Triangular
Thickness: 4.76 mm
: Seco Turning Insert, TNMG Insert, 160408 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16.5 mm Length, 16 Seat, Negative Rake, MF5 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: TH1000, ANSI Code: TNMG332-MF5 TH1000, ISO Code: TNMG160408-MF5 TH1000, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hardened Steels, Super Alloys and Titanium

: Manufacturer Name: Seco Tools
ANSI Code: TNMG332-MF5 TH1000
Chipbreaker: MF5
Corner Radius: 0.8 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlSiN Nanolaminate Coated
For Use On: Hardened Steels, Super Alloys and Titanium
Hole Diameter: 3.81 mm
Included Angle: 60 deg
Inscribed Circle: 9.52 mm
Insert Size: 160408
Insert Style: TNMG
ISO Code: TNMG160408-MF5 TH1000
Length: 16.5 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: TH1000
Material: Carbide
Material Grade: H, S
Maximum Depth of Cut: 3.75 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 16
Shape: Triangular
Thickness: 4.76 mm
: Seco Turning Insert, TNMG Insert, 160408 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16.5 mm Length, 16 Seat, Negative Rake, MF5 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: TH1000, ANSI Code: TNMG332-MF5 TH1000, ISO Code: TNMG160408-MF5 TH1000, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hardened Steels, Super Alloys and Titanium
