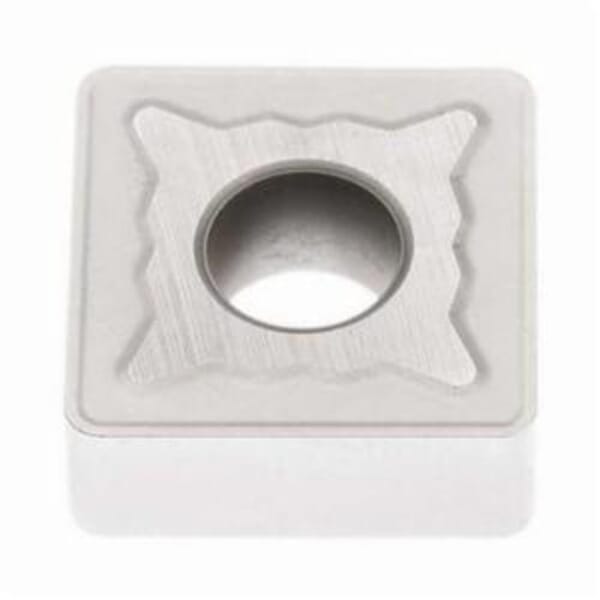

Seco 02960573 Turning Insert, ANSI Code: SNMG644-MR7 TP2501, SNMG Insert, Material Grade: P, 190616 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02960573 Turning Insert, ANSI Code: SNMG644-MR7 TP2501, SNMG Insert, Material Grade: P, 190616 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

ManufacturerSeco

Part #288516637

MFG #02960573

Seco Turning Insert, SNMG Insert, 190616 Insert, Squared, 13 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19.05 mm Width, 19.05 mm Length, 19 Seat, Negative Rake, MR7 Chipbreaker, 1.6 mm Corner Radius, 7.92 mm Hole Dia, Manufacturers Grade: TP2501, ANSI Code: SNMG644-MR7 TP2501, ISO Code: SNMG190616-MR7 TP2501, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

$40.43

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: SNMG644-MR7 TP2501
Chipbreaker: MR7
Corner Radius: 1.6 mm
Country of Origin: IN
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3 Coated
For Use On: Steel
Hole Diameter: 7.92 mm
Included Angle: 90 deg
Inscribed Circle: 19.05 mm
Insert Size: 190616
Insert Style: SNMG
ISO Code: SNMG190616-MR7 TP2501
Length: 19.05 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: TP2501
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 13 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 19
Shape: Squared
Thickness: 6.35 mm
Width: 19.05 mm
: Seco Turning Insert, SNMG Insert, 190616 Insert, Squared, 13 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19.05 mm Width, 19.05 mm Length, 19 Seat, Negative Rake, MR7 Chipbreaker, 1.6 mm Corner Radius, 7.92 mm Hole Dia, Manufacturers Grade: TP2501, ANSI Code: SNMG644-MR7 TP2501, ISO Code: SNMG190616-MR7 TP2501, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
