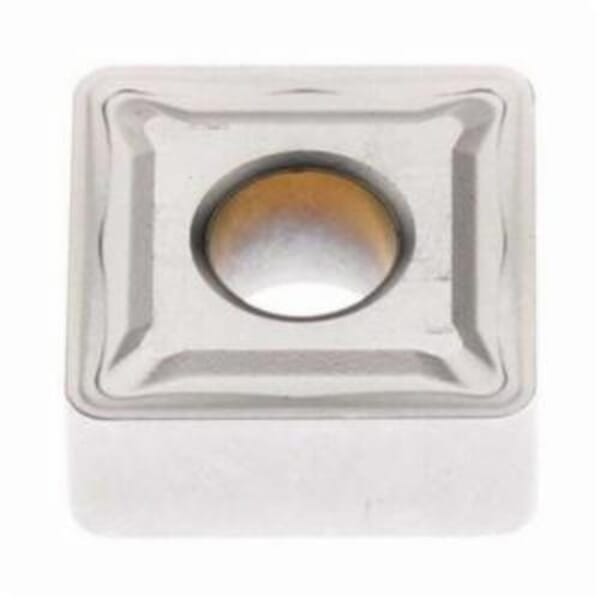

Seco 02960518 Turning Insert, ANSI Code: SNMG434-M5 TP1501, SNMG Insert, Material Grade: P, 120416 Insert, Squared Shape, 12 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1501

ManufacturerSeco

Part #288516304

MFG #02960518

Seco Turning Insert, SNMG Insert, 120416 Insert, Squared Shape, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Negative/Positive Rake, M5 Chipbreaker, 1.6 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturers Grade: TP1501, ANSI Code: SNMG434-M5 TP1501, ISO Code: SNMG120416-M5 TP1501, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

$18.43

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: SNMG434-M5 TP1501
Chipbreaker: M5
Corner Radius: 1.6 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3 Coated
For Use On: Steel
Hole Diameter: 5.15 mm
Included Angle: 90 deg
Inscribed Circle: 12.7 mm
Insert Size: 120416
Insert Style: SNMG
ISO Code: SNMG120416-M5 TP1501
Length: 12.7 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: TP1501
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 5 mm
Rake: Negative/Positive
Relief Angle: 0 deg
Seat Size: 12
Shape: Squared
Thickness: 4.76 mm
Width: 12.7 mm
: Seco Turning Insert, SNMG Insert, 120416 Insert, Squared Shape, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Negative/Positive Rake, M5 Chipbreaker, 1.6 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturers Grade: TP1501, ANSI Code: SNMG434-M5 TP1501, ISO Code: SNMG120416-M5 TP1501, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
