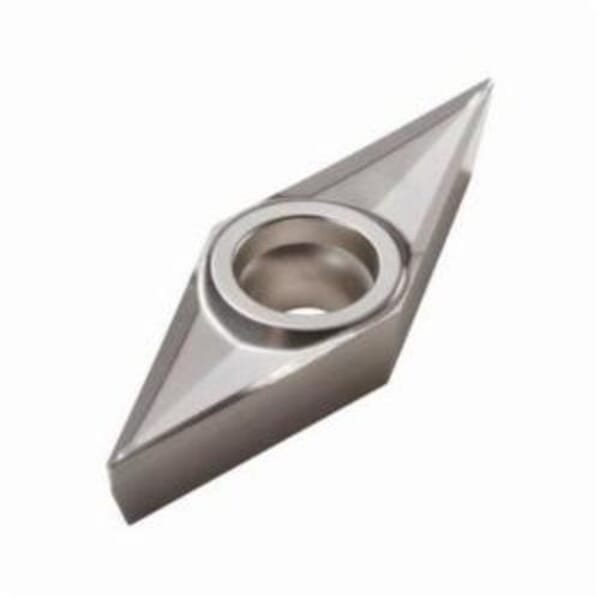

Seco 00015958 Turning Insert, ANSI Code: VCGT332F-AL KX, VCGT Insert, Material Grade: N, 160408 Insert, Diamond Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: KX

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00015958 Turning Insert, ANSI Code: VCGT332F-AL KX, VCGT Insert, Material Grade: N, 160408 Insert, Diamond Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: KX

ManufacturerSeco

Part #288515958

MFG #00015958

Seco Turning Insert, VCGT Insert, 160408 Insert, Diamond, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, AL Chipbreaker, 0.8 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: KX, ANSI Code: VCGT332F-AL KX, ISO Code: VCGT160408F-AL KX, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals

$25.58

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: VCGT332F-AL KX
Chipbreaker: AL
Corner Radius: 0.8 mm
Country of Origin: CZ, SE
Cutting Direction: Neutral
Finish: Uncoated
For Use On: Non-Ferrous Metals
Hole Diameter: 4.4 mm
Included Angle: 35 deg
Inscribed Circle: 9.52 mm
Insert Size: 160408
Insert Style: VCGT
ISO Code: VCGT160408F-AL KX
Manufacturer Name: Seco Tools
Manufacturers Grade: KX
Material: Carbide
Material Grade: N
Maximum Depth of Cut: 3.75 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 16
Shape: Diamond
Thickness: 4.76 mm
: Seco Turning Insert, VCGT Insert, 160408 Insert, Diamond, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, AL Chipbreaker, 0.8 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: KX, ANSI Code: VCGT332F-AL KX, ISO Code: VCGT160408F-AL KX, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals
: Video Link

: Manufacturer Name: Seco Tools
ANSI Code: VCGT332F-AL KX
Chipbreaker: AL
Corner Radius: 0.8 mm
Country of Origin: CZ, SE
Cutting Direction: Neutral
Finish: Uncoated
For Use On: Non-Ferrous Metals
Hole Diameter: 4.4 mm
Included Angle: 35 deg
Inscribed Circle: 9.52 mm
Insert Size: 160408
Insert Style: VCGT
ISO Code: VCGT160408F-AL KX
Manufacturer Name: Seco Tools
Manufacturers Grade: KX
Material: Carbide
Material Grade: N
Maximum Depth of Cut: 3.75 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 16
Shape: Diamond
Thickness: 4.76 mm
: Seco Turning Insert, VCGT Insert, 160408 Insert, Diamond, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, AL Chipbreaker, 0.8 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: KX, ANSI Code: VCGT332F-AL KX, ISO Code: VCGT160408F-AL KX, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals
