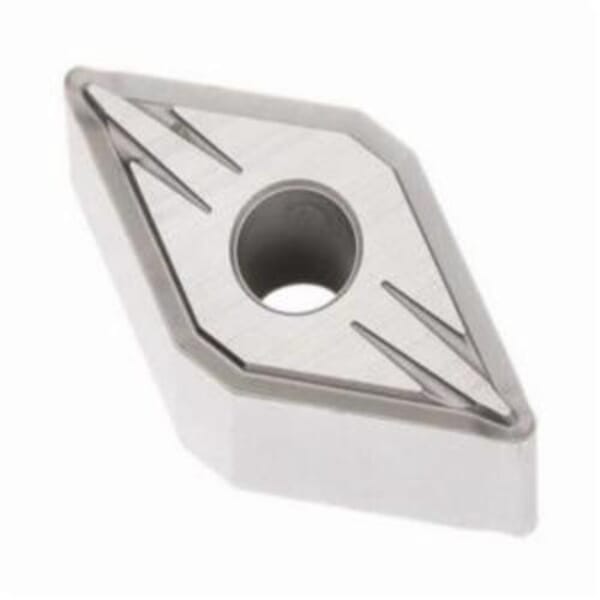

Seco 02960019 Turning Insert, ANSI Code: DNMG431-FF2 TP2501, DNMG Insert, Material Grade: P, 150404 Insert, Diamond Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02960019 Turning Insert, ANSI Code: DNMG431-FF2 TP2501, DNMG Insert, Material Grade: P, 150404 Insert, Diamond Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

ManufacturerSeco

Part #288515594

MFG #02960019

Seco Turning Insert, DNMG Insert, 150404 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Negative Rake, FF2 Chipbreaker, 0.4 mm Corner Radius, 5.15 mm Hole Dia, Manufacturers Grade: TP2501, ANSI Code: DNMG431-FF2 TP2501, ISO Code: DNMG150404-FF2 TP2501, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

$23.20

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: DNMG431-FF2 TP2501
Chipbreaker: FF2
Corner Radius: 0.4 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3 Coated
For Use On: Steel
Hole Diameter: 5.15 mm
Included Angle: 55 deg
Inscribed Circle: 12.7 mm
Insert Size: 150404
Insert Style: DNMG
ISO Code: DNMG150404-FF2 TP2501
Manufacturer Name: Seco Tools
Manufacturers Grade: TP2501
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 5.25 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 15
Shape: Diamond
Thickness: 4.76 mm
: Seco Turning Insert, DNMG Insert, 150404 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Negative Rake, FF2 Chipbreaker, 0.4 mm Corner Radius, 5.15 mm Hole Dia, Manufacturers Grade: TP2501, ANSI Code: DNMG431-FF2 TP2501, ISO Code: DNMG150404-FF2 TP2501, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
