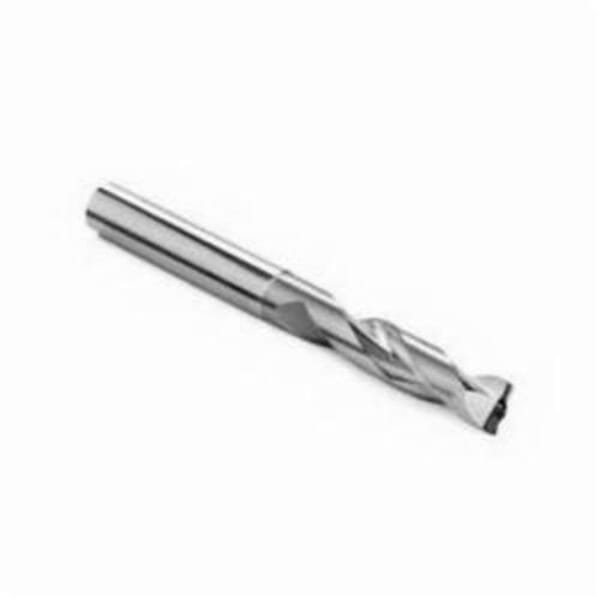

Seco Feedmax 02827930 SD203A-CX2 Shank Drill, 3.2 mm Drill - Metric, 0.126 in Drill - Decimal Inch, Solid Carbide, PVD TiAlN+TiN Coated

ManufacturerSeco

Part #288514508

MFG #02827930

Seco Feedmax Shank Drill, Series: SD203A-CX2, Metric, 3.2 mm Drill - Metric, 0.126 in Drill - Decimal Inch, 62 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 20 mm Flute Length, 6 mm Dia x 36 mm L Shank, Cylindrical Shank, 120 deg Point, Self-Centering Point, Right Hand Cutting Direction, PCD Cutting Edge, Solid Carbide, PVD TiAlN+TiN Coated, Applicable Materials: CFRP and GFRP

$1,380.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Applicable Materials: CFRP and GFRP

Country of Origin: FR

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: PCD

Drill Diameter Measurement System: Metric

Drill Size - Decimal Inch: 0.126 in

Drill Size - Metric: 3.2 mm

Finish: PVD TiAlN+TiN Coated

Flute Length: 20 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 62 mm

Point Angle: 120 deg

Point Type: Self-Centering

Series: SD203A-CX2

Shank Size: 6 mm Dia x 36 mm L

Shank Type: Cylindrical

Two distinct solutions for composite drilling: diamond-coated drills and polycrystalline diamond (PCD) drills
These tools feature geometries that are optimized specifically for regular composites or stacked materials
CX1 and CX2 are polycrystalline diamond (PCD) drills that offer enhanced productivity and tool life over conventional drills when machining composite materials
These tips can be much sharper than diamond-coated drills because when the coating is applied, it wraps around the cutting edge and creates a dulling effect
Solid PCD-tipped drills offer higher cutting speeds, long tool life, low friction, superior thermal conductivity, multiple re-sharpening capacity and high process reliability

DIN 6537A

For hole making applications

Manufacturer Name: Seco Tools

Applicable Materials: CFRP and GFRP

Country of Origin: FR

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: PCD

Drill Diameter Measurement System: Metric

Drill Size - Decimal Inch: 0.126 in

Drill Size - Metric: 3.2 mm

Finish: PVD TiAlN+TiN Coated

Flute Length: 20 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 62 mm

Point Angle: 120 deg

Point Type: Self-Centering

Series: SD203A-CX2

Shank Size: 6 mm Dia x 36 mm L

Shank Type: Cylindrical

Two distinct solutions for composite drilling: diamond-coated drills and polycrystalline diamond (PCD) drills
These tools feature geometries that are optimized specifically for regular composites or stacked materials
CX1 and CX2 are polycrystalline diamond (PCD) drills that offer enhanced productivity and tool life over conventional drills when machining composite materials
These tips can be much sharper than diamond-coated drills because when the coating is applied, it wraps around the cutting edge and creates a dulling effect
Solid PCD-tipped drills offer higher cutting speeds, long tool life, low friction, superior thermal conductivity, multiple re-sharpening capacity and high process reliability

DIN 6537A

For hole making applications
