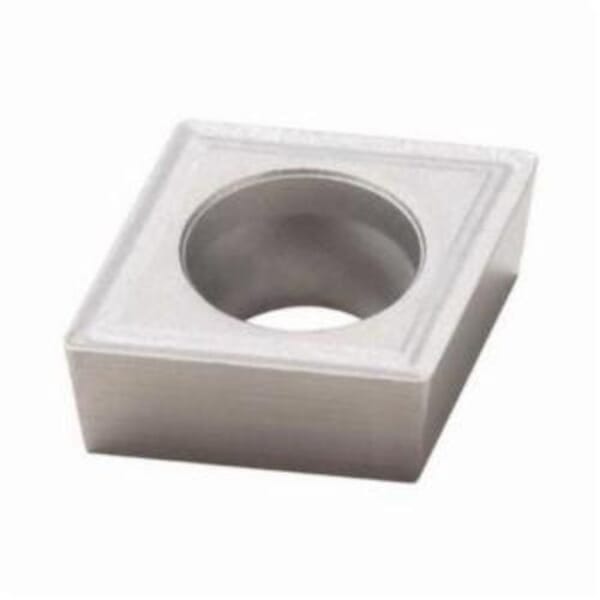

Seco 74011753 Turning Insert, ANSI Code: CCMT32.51-F2 HX, CCMT Insert, Material Grade: H, K, M, N, 09T304 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Hard Materials, Non-Ferrous Metals and Stainless Steel, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 74011753 Turning Insert, ANSI Code: CCMT32.51-F2 HX, CCMT Insert, Material Grade: H, K, M, N, 09T304 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Hard Materials, Non-Ferrous Metals and Stainless Steel, Carbide

ManufacturerSeco

Part #288511753

MFG #74011753

Seco Turning Insert, CCMT Insert, 09T304 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, F2 Chipbreaker, 0.4 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: HX, ANSI Code: CCMT32.51-F2 HX, ISO Code: CCMT09T304-F2 HX, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: H, K, M, N, For Use On: Cast Iron, Hard Materials, Non-Ferrous Metals and Stainless Steel

$11.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CCMT32.51-F2 HX
Chipbreaker: F2
Corner Radius: 0.4 mm
Country of Origin: IN
Cutting Direction: Neutral
Finish: Uncoated
For Use On: Cast Iron, Hard Materials, Non-Ferrous Metals and Stainless Steel
Hole Diameter: 4.5 mm
Included Angle: 80 deg
Inscribed Circle: 9.5 mm
Insert Size: 09T304
Insert Style: CCMT
ISO Code: CCMT09T304-F2 HX
Manufacturer Name: Seco Tools
Manufacturers Grade: HX
Material: Carbide
Material Grade: H, K, M, N
Maximum Depth of Cut: 3.5 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 09
Shape: Diamond
Thickness: 3.97 mm
: Seco Turning Insert, CCMT Insert, 09T304 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, F2 Chipbreaker, 0.4 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: HX, ANSI Code: CCMT32.51-F2 HX, ISO Code: CCMT09T304-F2 HX, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: H, K, M, N, For Use On: Cast Iron, Hard Materials, Non-Ferrous Metals and Stainless Steel
