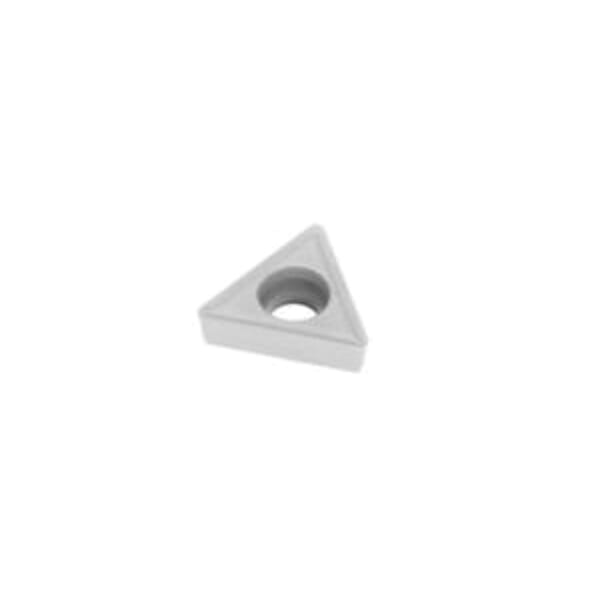

Seco 03310401 Turning Insert, ANSI Code: TCMT32.52-F1, TCMT Insert, 32.5 Insert, Triangle Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Stainless Steel and Cast Iron, Carbide, Manufacturers Grade: TP25

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 03310401 Turning Insert, ANSI Code: TCMT32.52-F1, TCMT Insert, 32.5 Insert, Triangle Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Stainless Steel and Cast Iron, Carbide, Manufacturers Grade: TP25

ManufacturerSeco

Part #288510401

MFG #03310401

Seco Turning Insert, TCMT Insert, 32.5 Insert, Triangle, 3/8 in Inscribed Circle, 3.97 mm Thickness, 16.5 mm Length, 16 Seat, Positive Rake, F1 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: TP25, ANSI Code: TCMT32.52-F1, ISO Code: TCMT16T308-F1, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN/Al2O3 Coated, For Use On: Steel, Stainless Steel and Cast Iron

$17.05

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: TCMT32.52-F1
Chipbreaker: F1
Corner Radius: 0.8 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN/Al2O3 Coated
For Use On: Steel, Stainless Steel and Cast Iron
Hole Diameter: 4.5 mm
Included Angle: 60 deg
Inscribed Circle: 3/8 in
Insert Size: 32.5
Insert Style: TCMT
ISO Code: TCMT16T308-F1
Length: 16.5 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: TP25
Material: Carbide
Rake: Positive
Relief Angle: 7 deg
Seat Size: 16
Shape: Triangle
Thickness: 3.97 mm
: PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
: Seco Turning Insert, TCMT Insert, 32.5 Insert, Triangle, 3/8 in Inscribed Circle, 3.97 mm Thickness, 16.5 mm Length, 16 Seat, Positive Rake, F1 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: TP25, ANSI Code: TCMT32.52-F1, ISO Code: TCMT16T308-F1, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN/Al2O3 Coated, For Use On: Steel, Stainless Steel and Cast Iron
