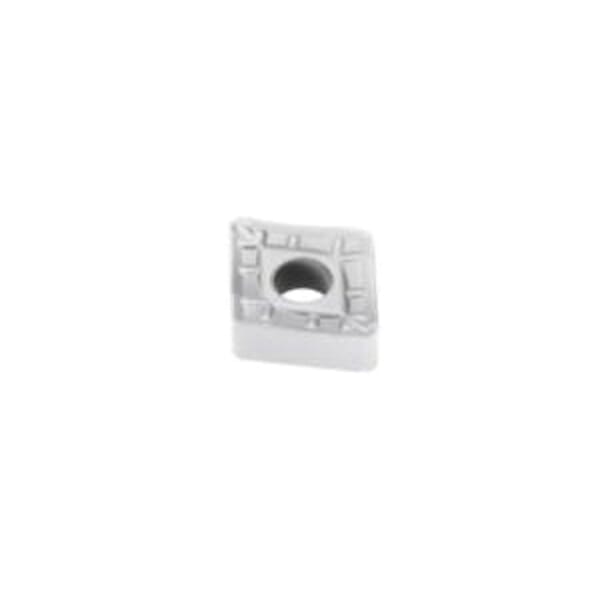

Seco 03310326 Turning Insert, ANSI Code: CNMM543-R4, CNMM Insert, 543 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Stainless Steel and Cast Iron, Carbide, Manufacturers Grade: TP25

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 03310326 Turning Insert, ANSI Code: CNMM543-R4, CNMM Insert, 543 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Stainless Steel and Cast Iron, Carbide, Manufacturers Grade: TP25

ManufacturerSeco

Part #288510326

MFG #03310326

Seco Turning Insert, CNMM Insert, 543 Insert, Diamond, 5/8 in Inscribed Circle, 6.35 mm Thickness, 16.1 mm Length, 16 Seat, Negative Rake, R4 Chipbreaker, 1.2 mm Corner Radius, 6.35 mm Hole Dia, Manufacturers Grade: TP25, ANSI Code: CNMM543-R4, ISO Code: CNMM160612-R4, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN/Al2O3 Coated, For Use On: Steel, Stainless Steel and Cast Iron

$27.97

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CNMM543-R4
Chipbreaker: R4
Corner Radius: 1.2 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN/Al2O3 Coated
For Use On: Steel, Stainless Steel and Cast Iron
Hole Diameter: 6.35 mm
Included Angle: 80 deg
Inscribed Circle: 5/8 in
Insert Size: 543
Insert Style: CNMM
ISO Code: CNMM160612-R4
Length: 16.1 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: TP25
Material: Carbide
Rake: Negative
Relief Angle: 0 deg
Seat Size: 16
Shape: Diamond
Thickness: 6.35 mm
: Seco Turning Insert, CNMM Insert, 543 Insert, Diamond, 5/8 in Inscribed Circle, 6.35 mm Thickness, 16.1 mm Length, 16 Seat, Negative Rake, R4 Chipbreaker, 1.2 mm Corner Radius, 6.35 mm Hole Dia, Manufacturers Grade: TP25, ANSI Code: CNMM543-R4, ISO Code: CNMM160612-R4, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN/Al2O3 Coated, For Use On: Steel, Stainless Steel and Cast Iron
