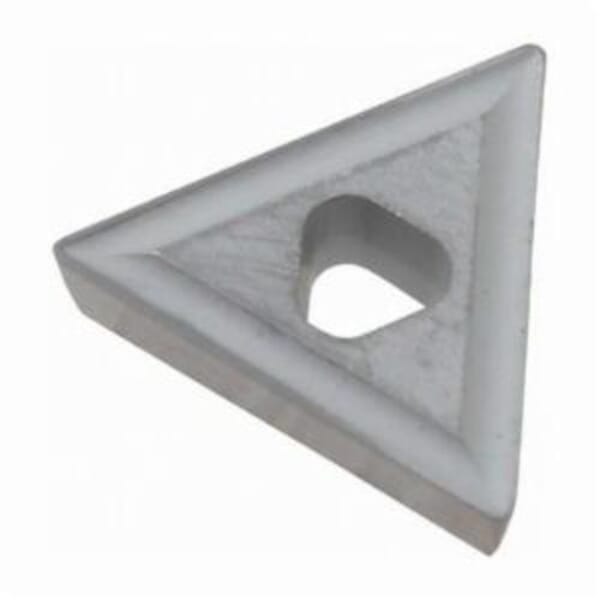

Seco 00009150 Turning Insert, ANSI Code: TPMM322-46 883, TPMM Insert, Material Grade: S, 160308 Insert, Triangular Shape, 16 Seat, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturers Grade: 883

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00009150 Turning Insert, ANSI Code: TPMM322-46 883, TPMM Insert, Material Grade: S, 160308 Insert, Triangular Shape, 16 Seat, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturers Grade: 883

ManufacturerSeco

Part #288509150

MFG #00009150

Seco Turning Insert, TPMM Insert, 160308 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16.5 mm Length, 16 Seat, 46 Chipbreaker, 0.8 mm Corner Radius, 4.19 mm Hole Dia, Manufacturers Grade: 883, ANSI Code: TPMM322-46 883, ISO Code: TPMM160308-46 883, 60 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium

$12.10

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: TPMM322-46 883
Chipbreaker: 46
Corner Radius: 0.8 mm
Country of Origin: IN
Cutting Direction: Neutral
Finish: Uncoated
For Use On: Super Alloys and Titanium
Hole Diameter: 4.19 mm
Included Angle: 60 deg
Inscribed Circle: 9.52 mm
Insert Size: 160308
Insert Style: TPMM
ISO Code: TPMM160308-46 883
Length: 16.5 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: 883
Material: Carbide
Material Grade: S
Maximum Depth of Cut: 3.75 mm
Relief Angle: 11 deg
Seat Size: 16
Shape: Triangular
Thickness: 3.18 mm
: Seco Turning Insert, TPMM Insert, 160308 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16.5 mm Length, 16 Seat, 46 Chipbreaker, 0.8 mm Corner Radius, 4.19 mm Hole Dia, Manufacturers Grade: 883, ANSI Code: TPMM322-46 883, ISO Code: TPMM160308-46 883, 60 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium
