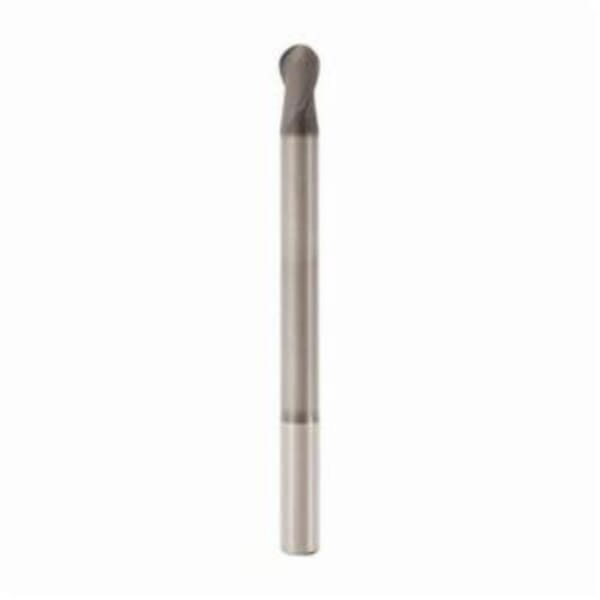

Seco JABRO Diamond 00023516 JD660 Ball End Center Cutting Single End Mill, 0.236 in Dia Cutter, 0.393 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 3.937 in OAL, Diamond Coated

ManufacturerSeco

Part #288508453

MFG #00023516

Seco JABRO Diamond End Mill, Ball End Center Cutting Single End, Series: JD660, 0.236 in Diameter Cutter, 3.937 in Overall Length, 0.393 in Length of Cut, 2 Flutes, Spiral Flute, 0.236 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 660VL060-DIAMOND, ISO Code: 660VL060-DIAMOND, Solid Carbide, Diamond Coated

$280.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: 660VL060-DIAMOND

Country of Origin: NL

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: Diamond Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: 660VL060-DIAMOND

Length of Cut: 0.393 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.937 in

Series: JD660

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End

JABRO-Diamond - Graphite machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Diamond (CVD) coated tools are the hardest of the coatings, used exclusively for applications in non-ferrous materials such as aluminum, graphite, copper, and carbon fiber
90 deg cutting edge
0.118 in corner radius
1.417 in L minimum clamping
30 deg axial rake
10 deg radial rake
0.228 in Dia neck
2.755 in L neck
E - Neck tool shape
2 teeth across centre cut

The Diamond line offers a wide range of geometries specially designed for graphite machining and covers diameters between 0.2 - 12.0 mm. The combination of hard metal and diamond coating was developed by Jabro Tools in such way that perfect adhesion of the coating is guaranteed.
