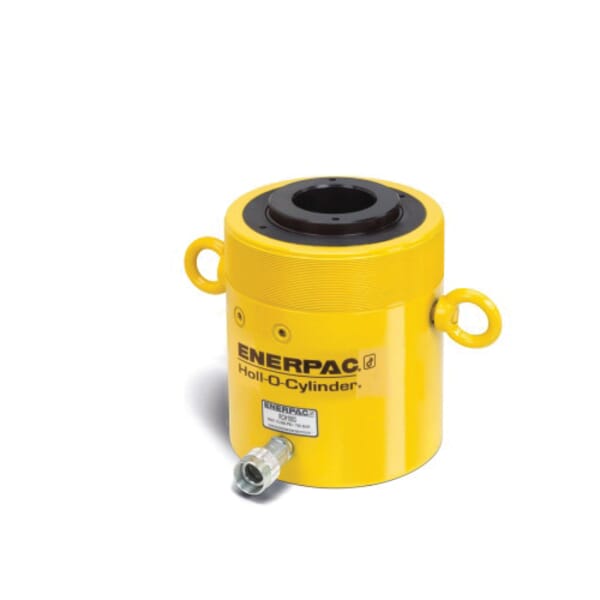

Enerpac RCH1211 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 12 ton, 2.13 in Bore, 1.63 in L Stroke, 4-3/4 in H Retract, 1.38 in Dia Rod, 10000 psi

Enerpac

Enerpac RCH1211 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 12 ton, 2.13 in Bore, 1.63 in L Stroke, 4-3/4 in H Retract, 1.38 in Dia Rod, 10000 psi

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Enerpac

Enerpac RCH1211 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 12 ton, 2.13 in Bore, 1.63 in L Stroke, 4-3/4 in H Retract, 1.38 in Dia Rod, 10000 psi

ManufacturerEnerpac

Part #283530313

MFG #RCH1211

UPC #066200530313

Enerpac Hydraulic Cylinder, Hollow Plunger Single Acting Spring Return, Series: RCH, 12 ton Capacity, 2.13 in Bore, 1.63 in Stroke Length, 4-3/4 in H Retract, Surface Mounting, 1/4 in Port, 1.38 in Rod Diameter, 10000 psi Pressure, Steel Housing Material, Baked Enamel, 2.75 in OD x 6.38 in H

$1,184.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Enerpac

Bore Size: 2.13 in

Capacity: 12 ton

Dimensions: 2.75 in OD x 6.38 in H

Finish: Baked Enamel

Housing Material: Steel

Mounting Type: Surface

Port Size: 1/4 in

Pressure Rating: 10000 psi

Retract: 4-3/4 in H

Rod Diameter: 1.38 in

Series: RCH

Stroke Length: 1.63 in

Type: Hollow Plunger Single Acting Spring Return

AR-630 Coupler and 1/4 NPTF Port

Hollow plunger design allows for both pull and push forces
Nickel plated, floating center tube on models over 20 ton increases product life
Baked enamel finish for increased corrosion-resistance
Collar threads for easy fixturing
Features CR-400 coupler
Have FZ-1630 reducer and AR-630 coupler
Safely erecting a bridge over water with a hydraulic driven launching nose
Pre-loading bridge cables with a battery powered hydraulic pump
Pulling pins on an oil well casing elevator spider

For industrial tools product lines

AR-630 Coupler and 1/4 NPTF Port

Catalog

Manufacturer Name: Enerpac

Bore Size: 2.13 in

Capacity: 12 ton

Dimensions: 2.75 in OD x 6.38 in H

Finish: Baked Enamel

Housing Material: Steel

Mounting Type: Surface

Port Size: 1/4 in

Pressure Rating: 10000 psi

Retract: 4-3/4 in H

Rod Diameter: 1.38 in

Series: RCH

Stroke Length: 1.63 in

Type: Hollow Plunger Single Acting Spring Return

AR-630 Coupler and 1/4 NPTF Port

Hollow plunger design allows for both pull and push forces
Nickel plated, floating center tube on models over 20 ton increases product life
Baked enamel finish for increased corrosion-resistance
Collar threads for easy fixturing
Features CR-400 coupler
Have FZ-1630 reducer and AR-630 coupler
Safely erecting a bridge over water with a hydraulic driven launching nose
Pre-loading bridge cables with a battery powered hydraulic pump
Pulling pins on an oil well casing elevator spider

For industrial tools product lines

AR-630 Coupler and 1/4 NPTF Port

Catalog
