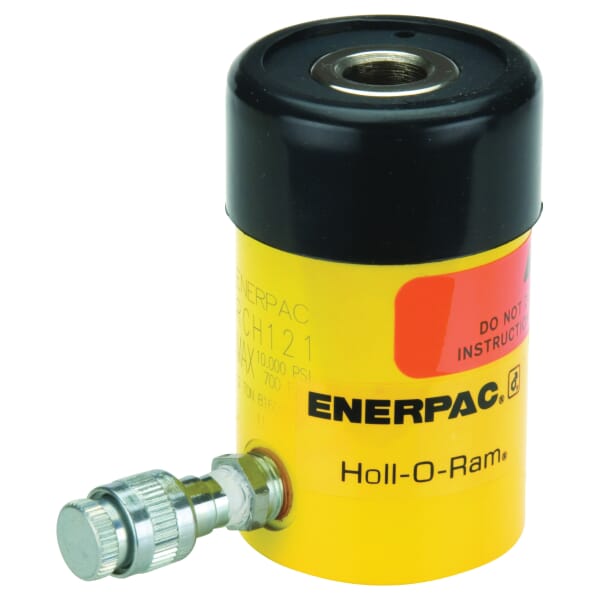

Enerpac RCH-121 Single Acting Spring Return Plunger Cylinder, 12 ton Capacity, 2.13 in Dia Bore, 1.63 in L Stroke, 4-3/4 in H Retract, 1.38 in Dia Rod, 10000 psi

ManufacturerEnerpac

Part #283530255

MFG #RCH121

UPC #662005302550

Enerpac Plunger Cylinder, Single Acting Spring Return, Series: RCH, 12 ton, 2.13 in Dia Bore, 1.63 in Stroke, 4-3/4 in H Retract, Base Mount, 1.38 in Rod Dia, 10000 psi, Steel Housing, Baked Enamel, 2-3/4 in OD

Price Not Available

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Enerpac

Bore Size: 2.13 in Dia

Capacity: 12 ton

Country of Origin: US

Dimensions: 2-3/4 in OD

Finish: Baked Enamel

Housing Material: Steel

Manufacturer Name: Enerpac

Mounting Type: Base

Pressure Rating: 10000 psi

Retract: 4-3/4 in H

Rod Diameter: 1.38 in

Series: RCH

Stroke Length: 1.63 in

Type: Single Acting Spring Return

FZ-1630 Reducer and AR-630 Coupler

Enerpac hollow plunger cylinders provide versatility in testing, maintenance and tensioning applications
The hollow plunger design allows for both pull and push forces
Cylinders are nickel plated, floating center tube on models over 20 tons increases product life
Baked enamel finish for increased corrosion resistance
Collar threads for easy fixturing

For pre-loading bridge cables with a battery powered hydraulic pump, pulling pins on an oil well casing elevator spider, versatility in testing, maintenance and tensioning applications

ANSI B30.1

FZ-1630 Reducer and AR-630 Coupler

Catalog

Instruction/Installation Manual

Warranty Information

Video Link

Manufacturer Name: Enerpac

Bore Size: 2.13 in Dia

Capacity: 12 ton

Country of Origin: US

Dimensions: 2-3/4 in OD

Finish: Baked Enamel

Housing Material: Steel

Manufacturer Name: Enerpac

Mounting Type: Base

Pressure Rating: 10000 psi

Retract: 4-3/4 in H

Rod Diameter: 1.38 in

Series: RCH

Stroke Length: 1.63 in

Type: Single Acting Spring Return

FZ-1630 Reducer and AR-630 Coupler

Enerpac hollow plunger cylinders provide versatility in testing, maintenance and tensioning applications
The hollow plunger design allows for both pull and push forces
Cylinders are nickel plated, floating center tube on models over 20 tons increases product life
Baked enamel finish for increased corrosion resistance
Collar threads for easy fixturing

For pre-loading bridge cables with a battery powered hydraulic pump, pulling pins on an oil well casing elevator spider, versatility in testing, maintenance and tensioning applications

ANSI B30.1

FZ-1630 Reducer and AR-630 Coupler

Catalog

Instruction/Installation Manual

Warranty Information

Video Link
