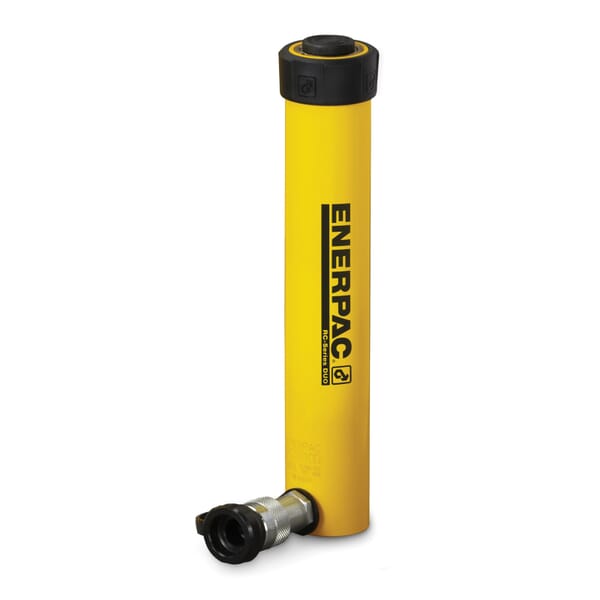

Enerpac RC5013 General Purpose Single Acting Spring Return Solid Plunger Hydraulic Cylinder, 55.2 ton Capacity, 3-3/4 in Bore, 13-1/4 in L Stroke, 18.13 in Retract, 2.81 in Dia Rod, 10000 psi Pressure

ManufacturerEnerpac

Part #283530170

MFG #RC5013

UPC #662005301706

Enerpac Hydraulic Cylinder, General Purpose Single Acting Spring Return Solid Plunger, 55.2 ton, 3-3/4 in Bore, 13-1/4 in Stroke, 18.13 in Retract, Base Mount, 3/8-18 NPTF, 2.81 in Rod Dia, 10000 psi, Steel Housing, Baked Enamel, 5 in OD x 31.38 in H

$3,650.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Enerpac

Bore Size: 3-3/4 in

Capacity: 55.2 ton

Country of Origin: CN

Dimensions: 5 in OD x 31.38 in H

Finish: Baked Enamel

Housing Material: Steel

Manufacturer Name: Enerpac

Mounting Type: Base

Port Size: 3/8-18 NPTF

Pressure Rating: 10000 psi

Retract: 18.13 in

Rod Diameter: 2.81 in

Series: RC Series

Stroke Length: 13-1/4 in

Type: General Purpose Single Acting Spring Return Solid Plunger

Unique GR2 bearing design, reduces wear, extending life
Collar threads and plunger threads enable easy fixturing
Designed for use in all positions
High strength alloy steel for durability
Redesigned cylinder thread protector for ease of use
Heavy duty, pretension spring improves retraction speed
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending

CR-400 Coupler and Dust Cap

Limited

Instruction/Installation Manual

Specification Sheet

Warranty Information
