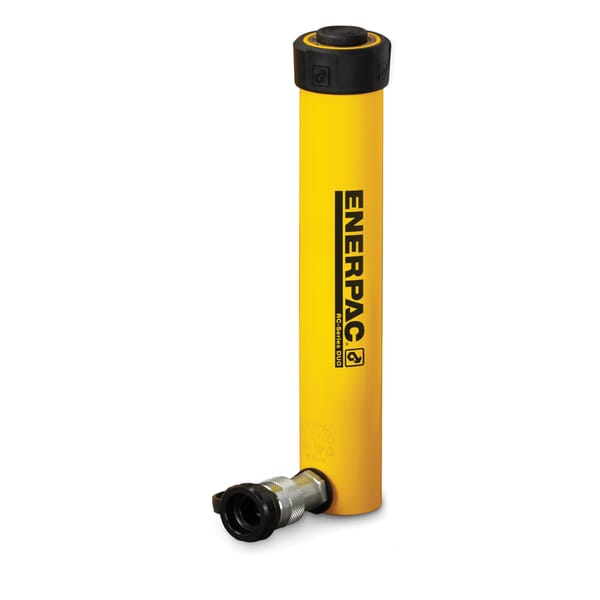

Enerpac RC-1010 DUO General Purpose Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 10.13 in L Stroke, 13-3/4 in H Retract, 1-1/2 in Dia Rod, 700 bar

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Enerpac

Enerpac RC-1010 DUO General Purpose Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 10.13 in L Stroke, 13-3/4 in H Retract, 1-1/2 in Dia Rod, 700 bar

ManufacturerEnerpac

Part #283530086

MFG #RC1010

UPC #662005300860

Enerpac Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 10 ton, 1.69 in Dia Bore, 10.13 in Stroke, 13-3/4 in H Retract, Base Mount, 1-1/2 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 2-1/4 in OD

$1,023.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Enerpac

Bore Size: 1.69 in Dia

Capacity: 10 ton

Country of Origin: CN

Dimensions: 2-1/4 in OD

Finish: Baked Enamel

Housing Material: Alloy Steel

Manufacturer Name: Enerpac

Mounting Type: Base

Pressure Rating: 700 bar

Retract: 13-3/4 in H

Rod Diameter: 1-1/2 in

Series: RC

Stroke Length: 10.13 in

Type: DUO General Purpose Single Acting

CR-400 Coupler and Dust Cap

Enerpac RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
Unique GR2 bearing design, reduces wear, extending life
Collar threads, plunger threads and base mounting holes enable easy fixturing
Designed for use in all positions
High strength alloy steel for durability
Redesigned cylinder thread protector for ease of use
Heavy duty, pretensioned spring improves retraction speed
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life

For safe disposal of old gas cylinders with hydraulic punch set, safely releasing furnace bricks from a steel fixture, removing the wheel studs on a Caterpillar 777 dump truck and repairing the foundation of tilting silo with steel piers
