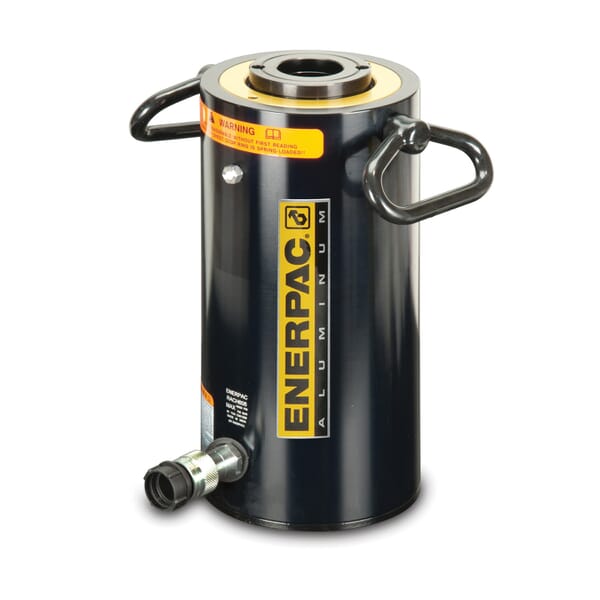

Enerpac RACH606 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 65.6 ton Capacity, 5.12 in Bore, 5.91 in L Stroke, 14.97 in Retract, 3.94 in Dia Rod, 10000 psi Pressure

Enerpac

Enerpac RACH606 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 65.6 ton Capacity, 5.12 in Bore, 5.91 in L Stroke, 14.97 in Retract, 3.94 in Dia Rod, 10000 psi Pressure

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Enerpac

Enerpac RACH606 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 65.6 ton Capacity, 5.12 in Bore, 5.91 in L Stroke, 14.97 in Retract, 3.94 in Dia Rod, 10000 psi Pressure

ManufacturerEnerpac

Part #283526422

MFG #RACH606

UPC #662005126422

Enerpac Hydraulic Cylinder, Hollow Plunger Single Acting Spring Return, 65.6 ton, 5.12 in Bore, 5.91 in Stroke, 14.97 in Retract, Base Mount, 3/8-18 NPTF, 3.94 in Rod Dia, 10000 psi, Aluminum Housing, Hard Coated, 7.09 in OD x 20.87 in H

$6,445.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Enerpac

Bore Size: 5.12 in

Capacity: 65.6 ton

Country of Origin: IN

Dimensions: 7.09 in OD x 20.87 in H

Finish: Hard Coated

Housing Material: Aluminum

Manufacturer Name: Enerpac

Mounting Type: Base

Port Size: 3/8-18 NPTF

Pressure Rating: 10000 psi

Retract: 14.97 in

Rod Diameter: 3.94 in

Series: RACH

Stroke Length: 5.91 in

Type: Hollow Plunger Single Acting Spring Return

Handle, CR-400 Coupler and Dust Cap

Hollow plunger design allows for both pull and push forces
Composite bearings increase cylinder life and side load resistance
Hard coat finish on all surfaces resists damage and extends cylinder life
Floating center tube increases seal life
Steel baseplate and saddle for protection against load induced damage
Integral stop ring prevents plunger over travel and is capable of withstanding the full cylinder capacity
High strength return spring for rapid cylinder retraction

ASME B-30.1|ISO 10100

Handle, CR-400 Coupler and Dust Cap

Limited

Instruction/Installation Manual

Specification Sheet

Warranty Information

Manufacturer Name: Enerpac

Bore Size: 5.12 in

Capacity: 65.6 ton

Country of Origin: IN

Dimensions: 7.09 in OD x 20.87 in H

Finish: Hard Coated

Housing Material: Aluminum

Manufacturer Name: Enerpac

Mounting Type: Base

Port Size: 3/8-18 NPTF

Pressure Rating: 10000 psi

Retract: 14.97 in

Rod Diameter: 3.94 in

Series: RACH

Stroke Length: 5.91 in

Type: Hollow Plunger Single Acting Spring Return

Handle, CR-400 Coupler and Dust Cap

Hollow plunger design allows for both pull and push forces
Composite bearings increase cylinder life and side load resistance
Hard coat finish on all surfaces resists damage and extends cylinder life
Floating center tube increases seal life
Steel baseplate and saddle for protection against load induced damage
Integral stop ring prevents plunger over travel and is capable of withstanding the full cylinder capacity
High strength return spring for rapid cylinder retraction

ASME B-30.1|ISO 10100

Handle, CR-400 Coupler and Dust Cap

Limited

Instruction/Installation Manual

Specification Sheet

Warranty Information
