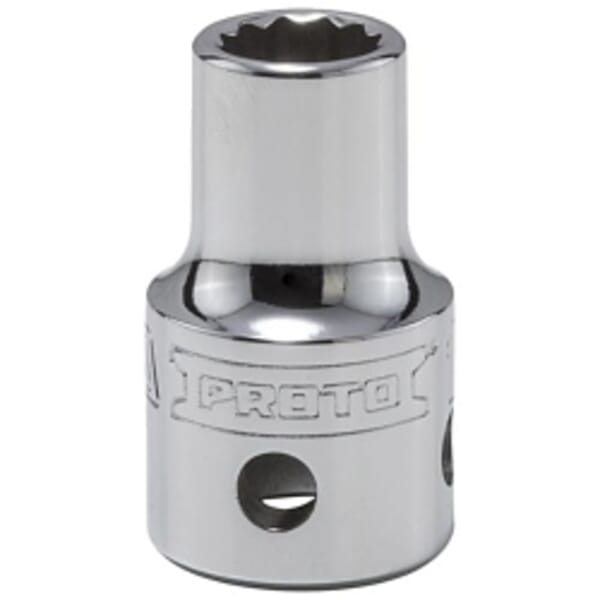

Proto TorquePlus J5420M-TT Standard Length Tether Ready Socket, 1/2 in Square Drive, 20 mm, 12 Points
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsProto TorquePlus J5420M-TT Standard Length Tether Ready Socket, 1/2 in Square Drive, 20 mm, 12 Points
ManufacturerProto
Part #267911678
MFG #J5420M-TT
UPC #662679116781
Proto TorquePlus Socket, Standard Length Tether Ready, Series, Measurement System, Square Drive, Drive Size, in 1/2, Socket Size, mm 20, 1-1/2 Overall Length, Opening Depth in, in 11/16, 1-3/32 Drive End Width, Socket End Width in, in 1-3/32, Number of Points, Bolt Clearance Depth, in 27/32, Alloy Steel, Finish
$25.49
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Stanley Black & DeckerBolt Clearance Depth:Â 27/32 inCountry of Origin:Â USDrive End Width:Â 1-3/32 inDrive Size:Â 1/2 inDrive Type:Â SquareFinish:Â Polished ChromeManufacturer Name:Â Stanley Black & DeckerMaterial:Â Alloy SteelMeasurement System:Â MetricNumber of Points:Â 12Opening Depth:Â 11/16 inOverall Length:Â 1-1/2 inSocket End Width:Â 1-3/32 inSocket Size:Â 20 mmType:Â Standard Length Tether Ready
- Proto Tethered tool sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive
- The positive control system requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent
- Chrome finish is applied after the holes are bored for better corrosion resistance
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
- ASME B107.5M|AS954E S3.8.1
- Proto TorquePlus Socket, Standard Length Tether Ready, Series, Measurement System, Square Drive, Drive Size, in 1/2, Socket Size, mm 20, 1-1/2 Overall Length, Opening Depth in, in 11/16, 1-3/32 Drive End Width, Socket End Width in, in 1-3/32, Number of Points, Bolt Clearance Depth, in 27/32, Alloy Steel, Finish
- Manufacturer Name:Â Stanley Black & DeckerBolt Clearance Depth:Â 27/32 inCountry of Origin:Â USDrive End Width:Â 1-3/32 inDrive Size:Â 1/2 inDrive Type:Â SquareFinish:Â Polished ChromeManufacturer Name:Â Stanley Black & DeckerMaterial:Â Alloy SteelMeasurement System:Â MetricNumber of Points:Â 12Opening Depth:Â 11/16 inOverall Length:Â 1-1/2 inSocket End Width:Â 1-3/32 inSocket Size:Â 20 mmType:Â Standard Length Tether Ready
- Proto Tethered tool sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive
- The positive control system requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent
- Chrome finish is applied after the holes are bored for better corrosion resistance
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
- ASME B107.5M|AS954E S3.8.1
- Proto TorquePlus Socket, Standard Length Tether Ready, Series, Measurement System, Square Drive, Drive Size, in 1/2, Socket Size, mm 20, 1-1/2 Overall Length, Opening Depth in, in 11/16, 1-3/32 Drive End Width, Socket End Width in, in 1-3/32, Number of Points, Bolt Clearance Depth, in 27/32, Alloy Steel, Finish
