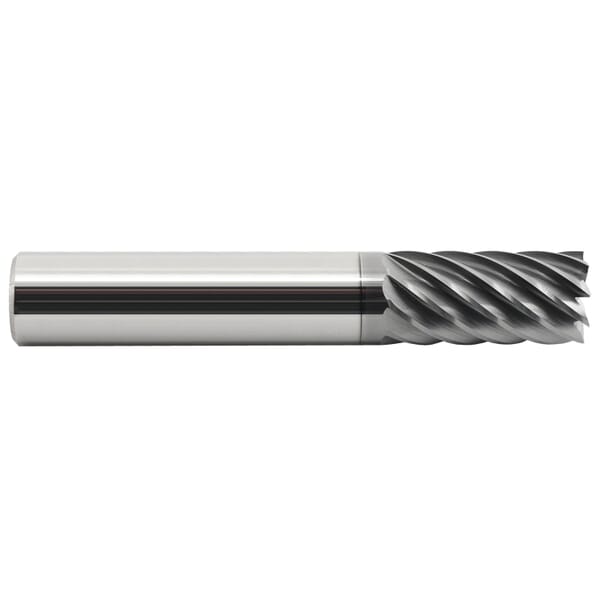

GARR 98468 TMS Finisher Non-Center Cutting Square End Mill, 16 mm Dia Cutter, 60 mm Length of Cut, 9 Flutes, 16 mm Dia Shank, 150 mm OAL, AlCrN Coated

FREE SHIPPING

ManufacturerGARR

Part #249098468

MFG #98468

AlCrN (Aluminum Chromium Nitride) coating offers exceptional wear resistance, thermal shock stability, and hot hardness, making it ideal for demanding machining applications. With a hardness of approximately 30-35 GPa and thermal stability up to 1,100°C, AlCrN performs reliably with challenging materials like titanium, Inconel, carbon fiber, stainless steel, cast iron, and tool steelsa valuable asset for manufacturers working with high-stress materials.

$225.04

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Garr Tool Company

Country of Origin: US

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Multiple

Helix Angle: 38 deg

Length of Cut: 60 mm

Manufacturer Name: Garr Tool Company

Material: Submicron Solid Carbide

Number of Flutes: 9

Overall Length: 150 mm

Series: TMS

Shank Diameter: 16 mm

Type: Finisher Non-Center Cutting Square End

Multiple flutes for increased feed rates
Odd number of flutes to naturally break up harmonics
Engineered for High Efficiency Milling
Up to 8 Percent Radial (ap) engagement
Conventional grind for better finish cutting and less push off when finishing

AlCrN (Aluminum Chromium Nitride) coating offers exceptional wear resistance, thermal shock stability, and hot hardness, making it ideal for demanding machining applications. With a hardness of approximately 30-35 GPa and thermal stability up to 1,100°C, AlCrN performs reliably with challenging materials like titanium, Inconel, carbon fiber, stainless steel, cast iron, and tool steelsa valuable asset for manufacturers working with high-stress materials.
