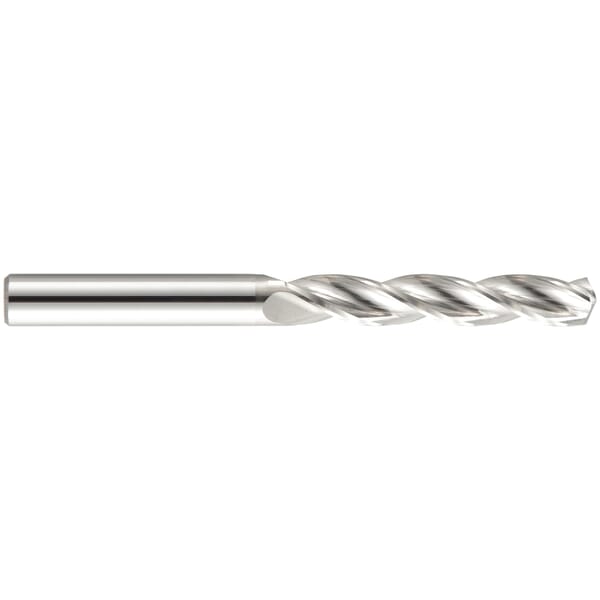

GARR 70561 1180 High Performance Jobber Length Drill Bit, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, Alumastar Coated

Garr Tool Company

GARR 70561 1180 High Performance Jobber Length Drill Bit, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, Alumastar Coated

FREE SHIPPING

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Garr Tool Company

GARR 70561 1180 High Performance Jobber Length Drill Bit, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, Alumastar Coated

FREE SHIPPING

ManufacturerGARR

Part #249070561

MFG #70561

ALUMASTAR, a Titanium Diboride (TiB₂) coating, is known for high hardness, typically around 25 GPa, and excellent thermal stability, maintaining performance at elevated temperatures. These properties, combined with a low affinity for aluminum, reduce adhesion and enable higher machining speeds and feeds, enhancing efficiency and precision in aluminum machining applications.

$152.05

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Garr Tool Company

Applicable Materials: Aluminum and Soft Materials

Color: Shiny Silver Gray

Country of Origin: US

Cutting Depth: 5XD

Cutting Edge Material: Submicron Grain Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.5 in

Drill Size - Fraction: 1/2 in

Finish: Alumastar Coated

Flute Length: 3-1/16 in

Flute Type: Spiral

Manufacturer Name: Garr Tool Company

Material: Submicron Grain Solid Carbide

Number of Flutes: 3

Overall Length: 5-3/8 in

Point Angle: 140 deg

Series: 1180

Shank Size: 1/2 in

Type: High Performance

No spot drilling required
Unique point geometry and coating for higher speeds and feeds
Live tooling recommended on lathe processes

OSHA Compliant|ACGIH Listed

ALUMASTAR, a Titanium Diboride (TiB₂) coating, is known for high hardness, typically around 25 GPa, and excellent thermal stability, maintaining performance at elevated temperatures. These properties, combined with a low affinity for aluminum, reduce adhesion and enable higher machining speeds and feeds, enhancing efficiency and precision in aluminum machining applications.

Specification Sheet

Catalog

Manufacturer Name: Garr Tool Company

Applicable Materials: Aluminum and Soft Materials

Color: Shiny Silver Gray

Country of Origin: US

Cutting Depth: 5XD

Cutting Edge Material: Submicron Grain Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.5 in

Drill Size - Fraction: 1/2 in

Finish: Alumastar Coated

Flute Length: 3-1/16 in

Flute Type: Spiral

Manufacturer Name: Garr Tool Company

Material: Submicron Grain Solid Carbide

Number of Flutes: 3

Overall Length: 5-3/8 in

Point Angle: 140 deg

Series: 1180

Shank Size: 1/2 in

Type: High Performance

No spot drilling required
Unique point geometry and coating for higher speeds and feeds
Live tooling recommended on lathe processes

OSHA Compliant|ACGIH Listed

ALUMASTAR, a Titanium Diboride (TiB₂) coating, is known for high hardness, typically around 25 GPa, and excellent thermal stability, maintaining performance at elevated temperatures. These properties, combined with a low affinity for aluminum, reduce adhesion and enable higher machining speeds and feeds, enhancing efficiency and precision in aluminum machining applications.

Specification Sheet

Catalog
