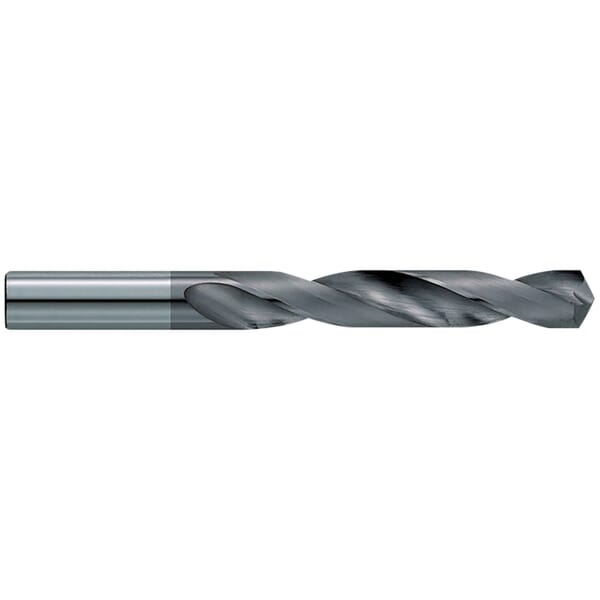

GARR 56261 1200H General Purpose Jobber Length Drill Bit, #38 Drill - Wire, 0.1015 in Drill - Decimal Inch, 118 deg Point, Submicron Grain Solid Carbide, Balinit Hardlube Coated

Garr Tool Company

GARR 56261 1200H General Purpose Jobber Length Drill Bit, #38 Drill - Wire, 0.1015 in Drill - Decimal Inch, 118 deg Point, Submicron Grain Solid Carbide, Balinit Hardlube Coated

FREE SHIPPING

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Garr Tool Company

GARR 56261 1200H General Purpose Jobber Length Drill Bit, #38 Drill - Wire, 0.1015 in Drill - Decimal Inch, 118 deg Point, Submicron Grain Solid Carbide, Balinit Hardlube Coated

FREE SHIPPING

ManufacturerGARR

Part #249056261

MFG #56261

HARDLUBE is a multi-layer coating that provides a hardness of approximately HV 3000 and a maximum application temperature of 800°C. The WC/C layer offers excellent lubricating properties, reducing friction and enhancing performance in high-temperature applications. This makes HARDLUBE suitable for drilling various materials, including steel, high-nickel alloys, stainless steel, cast iron, aluminum, brass, and bronze.

$13.21

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Garr Tool Company

Applicable Materials: Carbon Steel, Cast Materials like Aluminum, Steel, Ductile Iron and Gray Iron, Cobalt Base Alloy, High Strength Tool Steel, Iron Base Alloy, Medium Alloy Tool Steel, Monel, Nickel Base Alloy, Stainless Steel and Titanium Alloy

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Submicron Grain Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.1015 in

Drill Size - Wire: #38

Finish: Balinit Hardlube Coated

Flute Length: 1-1/4 in

Flute Type: Spiral

Manufacturer Name: Garr Tool Company

Material: Submicron Grain Solid Carbide

Number of Flutes: 2

Overall Length: 2-1/4 in

Point Angle: 118 deg

Point Type: 4-Facet/Cam

Series: 1200H

Shank Size: 0.1015 in

Type: General Purpose

Excellent heat resistance/lubricity
Cam point (less than or equal to 1/8 in diameter is with 4-facet point)
Live tooling recommended on lathe processes

HARDLUBE is a multi-layer coating that provides a hardness of approximately HV 3000 and a maximum application temperature of 800°C. The WC/C layer offers excellent lubricating properties, reducing friction and enhancing performance in high-temperature applications. This makes HARDLUBE suitable for drilling various materials, including steel, high-nickel alloys, stainless steel, cast iron, aluminum, brass, and bronze.

Specification Sheet

Catalog

Manufacturer Name: Garr Tool Company

Applicable Materials: Carbon Steel, Cast Materials like Aluminum, Steel, Ductile Iron and Gray Iron, Cobalt Base Alloy, High Strength Tool Steel, Iron Base Alloy, Medium Alloy Tool Steel, Monel, Nickel Base Alloy, Stainless Steel and Titanium Alloy

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Submicron Grain Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.1015 in

Drill Size - Wire: #38

Finish: Balinit Hardlube Coated

Flute Length: 1-1/4 in

Flute Type: Spiral

Manufacturer Name: Garr Tool Company

Material: Submicron Grain Solid Carbide

Number of Flutes: 2

Overall Length: 2-1/4 in

Point Angle: 118 deg

Point Type: 4-Facet/Cam

Series: 1200H

Shank Size: 0.1015 in

Type: General Purpose

Excellent heat resistance/lubricity
Cam point (less than or equal to 1/8 in diameter is with 4-facet point)
Live tooling recommended on lathe processes

HARDLUBE is a multi-layer coating that provides a hardness of approximately HV 3000 and a maximum application temperature of 800°C. The WC/C layer offers excellent lubricating properties, reducing friction and enhancing performance in high-temperature applications. This makes HARDLUBE suitable for drilling various materials, including steel, high-nickel alloys, stainless steel, cast iron, aluminum, brass, and bronze.

Specification Sheet

Catalog
