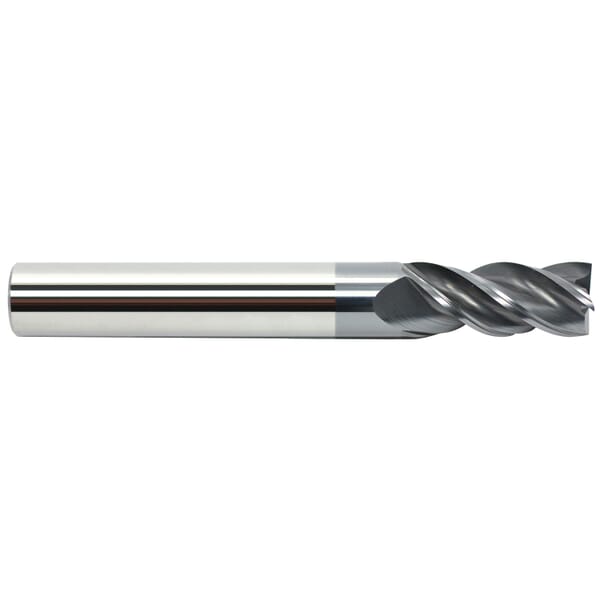

GARR 50547 V4S Center Cutting Square End Variable Helix End Mill, 16 mm Dia Cutter, 19 mm Length of Cut, 4 Flutes, 16 mm Dia Shank, 75 mm OAL, AlCrN Coated

FREE SHIPPING

ManufacturerGARR

Part #249050547

MFG #50547

AlCrN (Aluminum Chromium Nitride) coating offers exceptional wear resistance, thermal shock stability, and hot hardness, making it ideal for demanding machining applications. With a hardness of approximately 30-35 GPa and thermal stability up to 1,100°C, AlCrN performs reliably with challenging materials like titanium, Inconel, carbon fiber, stainless steel, cast iron, and tool steelsa valuable asset for manufacturers working with high-stress materials.

$111.11

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Garr Tool Company

Country of Origin: US

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Spiral

Length of Cut: 19 mm

Manufacturer Name: Garr Tool Company

Material: Submicron Solid Carbide

Number of Flutes: 4

Overall Length: 75 mm

Series: V4S

Shank Diameter: 16 mm

Shank Type: Plain

Type: Center Cutting Square End Variable Helix

Engineered for High Efficiency Milling
Variable flute design helps with chip evacuation in slots and pockets
PCT (Polish Carbide Treatment) enhances tool life
Minimizes burr on part
Smaller diameters can be modified with a flat within 48 hr

AlCrN (Aluminum Chromium Nitride) coating offers exceptional wear resistance, thermal shock stability, and hot hardness, making it ideal for demanding machining applications. With a hardness of approximately 30-35 GPa and thermal stability up to 1,100°C, AlCrN performs reliably with challenging materials like titanium, Inconel, carbon fiber, stainless steel, cast iron, and tool steelsa valuable asset for manufacturers working with high-stress materials.

Catalog

Specification Sheet

Manufacturer Name: Garr Tool Company

Country of Origin: US

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Spiral

Length of Cut: 19 mm

Manufacturer Name: Garr Tool Company

Material: Submicron Solid Carbide

Number of Flutes: 4

Overall Length: 75 mm

Series: V4S

Shank Diameter: 16 mm

Shank Type: Plain

Type: Center Cutting Square End Variable Helix

Engineered for High Efficiency Milling
Variable flute design helps with chip evacuation in slots and pockets
PCT (Polish Carbide Treatment) enhances tool life
Minimizes burr on part
Smaller diameters can be modified with a flat within 48 hr

AlCrN (Aluminum Chromium Nitride) coating offers exceptional wear resistance, thermal shock stability, and hot hardness, making it ideal for demanding machining applications. With a hardness of approximately 30-35 GPa and thermal stability up to 1,100°C, AlCrN performs reliably with challenging materials like titanium, Inconel, carbon fiber, stainless steel, cast iron, and tool steelsa valuable asset for manufacturers working with high-stress materials.
