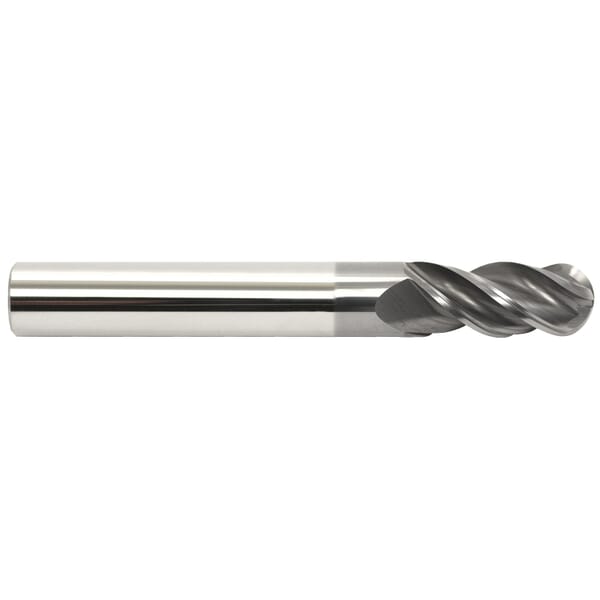

GARR 50254 V4B Ball End Center Cutting High Performance End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlCrN Coated

Garr Tool Company

GARR 50254 V4B Ball End Center Cutting High Performance End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlCrN Coated

FREE SHIPPING

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Garr Tool Company

GARR 50254 V4B Ball End Center Cutting High Performance End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlCrN Coated

FREE SHIPPING

ManufacturerGARR

Part #249050254

MFG #50254

AlCrN (Aluminum Chromium Nitride) coating offers exceptional wear resistance, thermal shock stability, and hot hardness, making it ideal for demanding machining applications. With a hardness of approximately 30-35 GPa and thermal stability up to 1,100°C, AlCrN performs reliably with challenging materials like titanium, Inconel, carbon fiber, stainless steel, cast iron, and tool steelsa valuable asset for manufacturers working with high-stress materials.

$27.42

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Garr Tool Company

Country of Origin: US

Cutter Diameter: 1/4 in

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Spiral

Length of Cut: 3/4 in

Manufacturer Name: Garr Tool Company

Material: Solid Submicron Carbide

Number of Flutes: 4

Overall Length: 2-1/2 in

Series: V4B

Shank Diameter: 1/4 in

Shank Length: 1-3/4 in

Shank Type: Plain

Type: Ball End Center Cutting

Engineered for High Efficiency Milling
Helix geometry varies over length of flutes
Variable flute design helps with chip evacuation in slots and pockets
PCT (Polish Carbide Treatment) enhances tool life
Minimizes burr on part
Smaller diameters can be modified with a flat within 48 hr

AlCrN (Aluminum Chromium Nitride) coating offers exceptional wear resistance, thermal shock stability, and hot hardness, making it ideal for demanding machining applications. With a hardness of approximately 30-35 GPa and thermal stability up to 1,100°C, AlCrN performs reliably with challenging materials like titanium, Inconel, carbon fiber, stainless steel, cast iron, and tool steelsa valuable asset for manufacturers working with high-stress materials.

Catalog

Specification Sheet

Manufacturer Name: Garr Tool Company

Country of Origin: US

Cutter Diameter: 1/4 in

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Spiral

Length of Cut: 3/4 in

Manufacturer Name: Garr Tool Company

Material: Solid Submicron Carbide

Number of Flutes: 4

Overall Length: 2-1/2 in

Series: V4B

Shank Diameter: 1/4 in

Shank Length: 1-3/4 in

Shank Type: Plain

Type: Ball End Center Cutting

Engineered for High Efficiency Milling
Helix geometry varies over length of flutes
Variable flute design helps with chip evacuation in slots and pockets
PCT (Polish Carbide Treatment) enhances tool life
Minimizes burr on part
Smaller diameters can be modified with a flat within 48 hr

AlCrN (Aluminum Chromium Nitride) coating offers exceptional wear resistance, thermal shock stability, and hot hardness, making it ideal for demanding machining applications. With a hardness of approximately 30-35 GPa and thermal stability up to 1,100°C, AlCrN performs reliably with challenging materials like titanium, Inconel, carbon fiber, stainless steel, cast iron, and tool steelsa valuable asset for manufacturers working with high-stress materials.

Catalog

Specification Sheet
