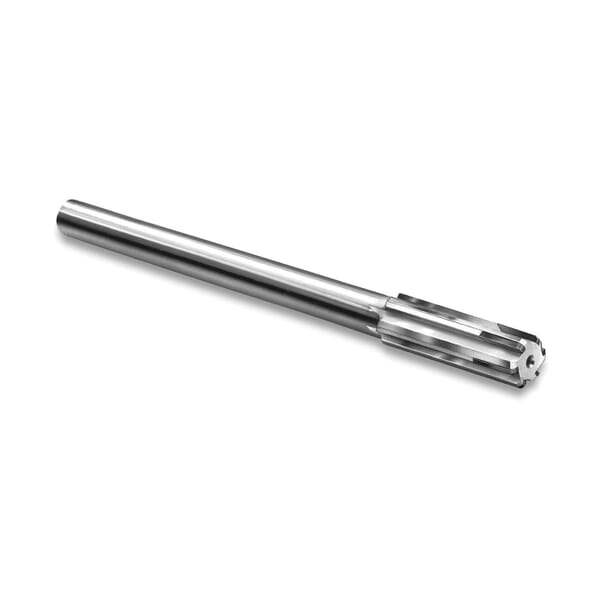

Hannibal 47899 478F General Purpose Over and Under Size Chucking Reamer, 1.001 in Dia x 10-1/2 in OAL, 7/8 in Dia Straight Shank, Straight Flute
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsHannibal 47899 478F General Purpose Over and Under Size Chucking Reamer, 1.001 in Dia x 10-1/2 in OAL, 7/8 in Dia Straight Shank, Straight Flute
ManufacturerHannibal
Part #241600060
MFG #47899
Hannibal Chucking Reamer, General Purpose Over and Under Size, Series: 478F, 1.001 in Dia, 10-1/2 in Overall Length, Straight Shank, 7/8 in Shank Dia, 8 Flutes, Straight Flute, 2-3/4 in Flute Length, Carbide Tip/Steel Body, Polished, Applicable Materials: Cast Iron, Steel and Non-Ferrous Metal
$115.15
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Hannibal Carbide ToolDiameter:Â 1.001 inFinish:Â PolishedFlute Length:Â 2-3/4 inFlute Type:Â StraightMaterial:Â Carbide Tip/Steel BodyNumber of Flutes:Â 8Overall Length:Â 10-1/2 inSeries:Â 478FShank Diameter:Â 7/8 inShank Type:Â StraightType:Â General Purpose Over and Under Size
- ASME/ANSI B94.2|NAS 897|USCTI Standards|PROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Carbide dust is a pulmonary irritant. Use proper ventilation & personal protection. More info: www.P65Warnings.ca.gov
- The reamer is used to finish machine a previously formed hole to an exact diameter with a smooth finish
- Carbide tipped reamers are especially appropriate for close tolerance reaming - because carbide is very highly resistant to wear, the reamer will produce accurate hole size and a smooth finish far longer than high speed steel or cobalt
- The reamer is an end cutting tool, cutting only on the chamfers edge at the outside diameter of the preformed hole
- Geometry and carbide grade appropriate for material being machined
- Higher feeds and speeds due to heat resistant cutting edge - reduces machine cycle time per part
- Consistent quality - maintains hole size and surface finish far longer
- Longer tool life - reduces down time for tool changes
- Superior performance over high speed steel and cobalt - good in a wide variety of materials
- Carbide tips brazed to tough hardened alloy steel body
- Polished flutes for easy chip flow
- Precision ground cutting edges
- These precision ground carbide tipped reamers are very convenient for finishing accurate holes in most materials
- 3/4 in L carbide
- The standard 45 deg chamfer angle provides effective cutting action for most materials
- -0.0005 in shank diameter tolerance
- 0.0003 in tool diameter tolerance
