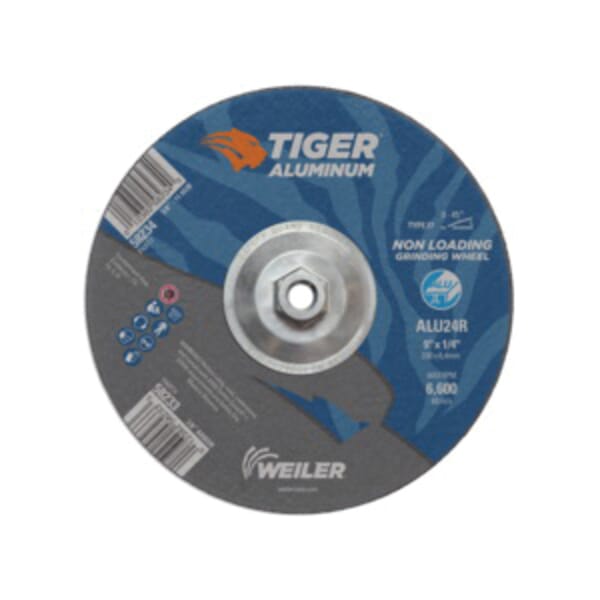

Tiger 58234 Contaminant-Free Non-Loading Performance Line Depressed Center Grinding Wheel, 9 in Dia x 1/4 in THK, 24 Grit, Silicon Carbide/Aluminum Oxide Abrasive

ManufacturerTiger

Part #238258234

MFG #58234

Tiger Depressed Center Grinding Wheel, Contaminant-Free Non-Loading Performance Line, 9 in Wheel Diameter, 1/4 in Wheel Thickness, Hub Connector, 24 Grit, Coarse Grade, Silicon Carbide/Aluminum Oxide Abrasive, Wheel Type Number: Type 27, 6600 rpm Maximum, Resin Bond, Applicable Materials: Aluminum, 5/8-11 Center Hole Thread Size, Wheel Hardness: R, Yes Reinforced

$12.55

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Weiler Abrasives

Abrasive Material: Silicon Carbide/Aluminum Oxide

Applicable Materials: Aluminum

Bond Type: Resin

Center Hole Thread Size: 5/8-11

Connector Type: Hub

Country of Origin: SI

Grade: Coarse

Grit: 24

Manufacturer Name: Weiler Abrasives

Maximum Speed: 6600 rpm

Reinforced: Yes

Type: Contaminant-Free Non-Loading Performance Line

Wheel Diameter: 9 in

Wheel Hardness: R

Wheel Thickness: 1/4 in

Wheel Type Number: Type 27

Non-loading formula keeps the wheel from gumming up, allowing operators to get more work done in less time without compromising durability
Silicon carbide and aluminum oxide blend delivers a consistently high cut rate throughout the life of the wheel
Designed with fiberglass cut back from the edge to provide instant aggressive grinding right out of the box
Triple fiberglass reinforcement provides added strength for aggressive stock removal
5/8 in - 11 nutted metal hub allows for quick spin-on, spin-off changeover and eliminates cross-threading or sticking to spindle due to heat build-up
Best for use on aluminum

Fabricators know aluminum can be a challenging metal to work with because of its low melting temperature and tendency to load and stop cutting. Thats why Weiler designed a new line of cutting and grinding wheels that deliver a non-loading solution that maximizes cut rates, increasing productivity when working with aluminum. These wheels leverage a unique blend of abrasive grains and contaminant free additives that work to prevent loading, resulting in higher cut rates and long wheel life.
