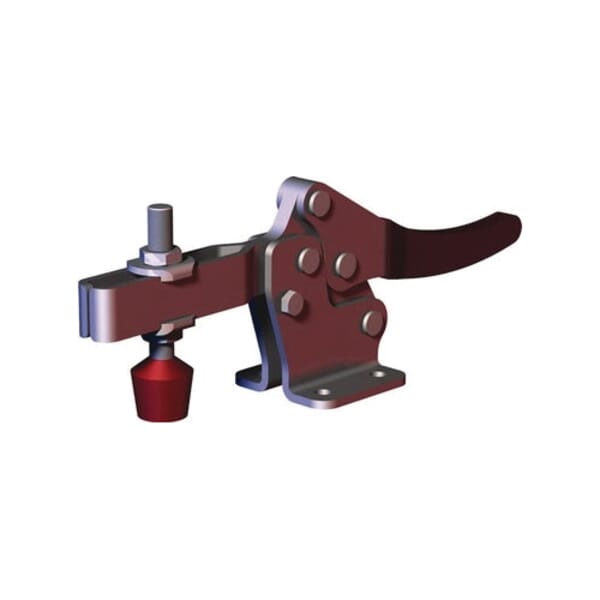

DESTACO 245-U Horizontal Hold-Down Low Profile Standard Toggle Locking Clamp, Steel, 1000 lb, 2.19 in, 1/2-13

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

DESTACO

DESTACO 245-U Horizontal Hold-Down Low Profile Standard Toggle Locking Clamp, Steel, 1000 lb, 2.19 in, 1/2-13

ManufacturerDESTACO

Part #229652450

MFG #52450

UPC #697437524508

DESTACO Toggle Locking Clamp, Horizontal Hold-Down Low Profile Standard, Series: 245 Series, 1000 lb Holding, 2.19 in Height Under Arm, 4.24 in Overall Height, 12.23 in Overall Length, 1/2-13 Thread, Straight Handle, U-Bar Bar, 105 deg Bar Opening, Flanged Base, 1.63 x 1.62 in Mounting Centers, Steel, Electro Plated Zinc

Price Not Available

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: DESTACO

Bar Opening: 105 deg

Bar Type: U-Bar

Base Type: Flanged

Country of Origin: TH

Finish: Electro Plated Zinc

Handle Type: Straight

Height Under Arm: 2.19 in

Holding Capacity: 1000 lb

Manufacturer Name: DESTACO

Material: Steel

Mounting Centers: 1.63 x 1.62 in

Overall Height: 4.24 in

Overall Length: 12.23 in

Series: 245 Series

Thread Size: 1/2-13

Type: Horizontal Hold-Down Low Profile Standard

Unique design gives greater hand clearance between the bar and handle
Large handle clearance in open position

247208-M Neoprene Spindle Assembly and 247109 Flanged Washer

Assembly, Checking Fixtures and Welding

247208-M Neoprene Spindle Assembly and 247109 Flanged Washer

Specification Sheet

Manufacturer Name: DESTACO

Bar Opening: 105 deg

Bar Type: U-Bar

Base Type: Flanged

Country of Origin: TH

Finish: Electro Plated Zinc

Handle Type: Straight

Height Under Arm: 2.19 in

Holding Capacity: 1000 lb

Manufacturer Name: DESTACO

Material: Steel

Mounting Centers: 1.63 x 1.62 in

Overall Height: 4.24 in

Overall Length: 12.23 in

Series: 245 Series

Thread Size: 1/2-13

Type: Horizontal Hold-Down Low Profile Standard

Unique design gives greater hand clearance between the bar and handle
Large handle clearance in open position

247208-M Neoprene Spindle Assembly and 247109 Flanged Washer

Assembly, Checking Fixtures and Welding

247208-M Neoprene Spindle Assembly and 247109 Flanged Washer

Specification Sheet
