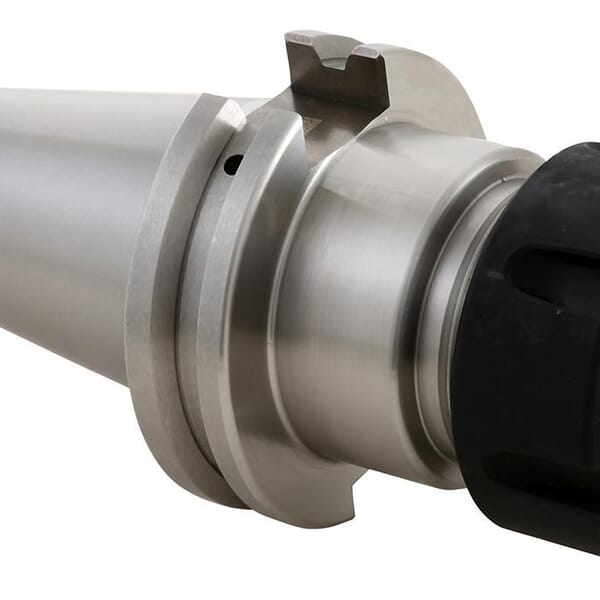

TECHNIKS 22261 Single End V-Flange Collet Chuck, Tapered Shank, ER40 Collet System, ER40 Chuck

ManufacturerTECHNIKS

Part #162122261

MFG #22261

TECHNIKS Collet Chuck, Single End V-Flange, 5.83 in Overall Length, 3.02 in Shank Length, 2.48 in Nose Dia, 3.15 in Head Length/Projection, ER40 Collet System, Tapered Shank, ER40 Chuck, CAT40 Taper, 2.48 in Collet Nut Dia, Yes Through Coolant (Yes/No)

$200.91

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Techniks Tool Group

Chuck Size: ER40

Collet Nut Diameter: 2.48 in

Collet System: ER40

Country of Origin: TW

Head Length/Projection: 3.15 in

Manufacturer Name: TECHNIKS INDUSTRIES, Techniks Tool Group

Nose Diameter: 2.48 in

Overall Length: 5.83 in

Shank Length: 3.02 in

Shank Type: Tapered

Taper Size: CAT40

Through Coolant (Yes/No): Yes

Type: Single End V-Flange

PowerCOAT Slotted Nut

Collet chucks are balanced to 25000 rpm at G2.5 tolerance
They are individually lab tested for accuracy and balance and come with their individual performance report
Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket
PowerCOAT nut included for 75% more clamping power

For drilling, milling and high speed applications
