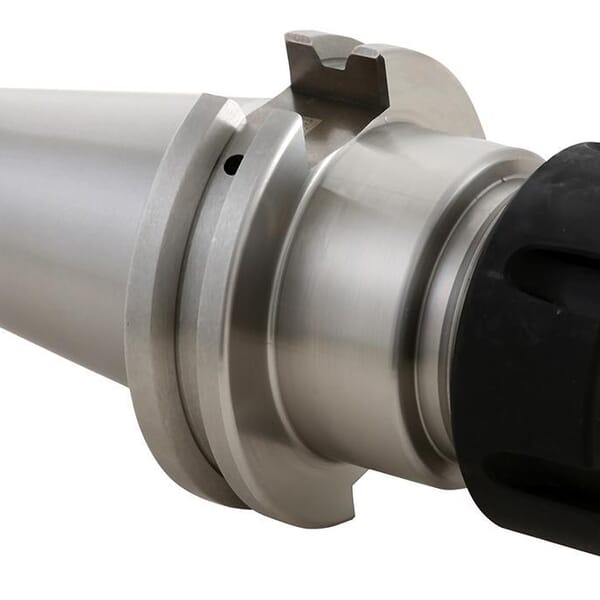

TECHNIKS 22245 Single End V-Flange Collet Chuck, Tapered Shank, ER25 Collet System, ER25 Chuck

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Techniks Tool Group

TECHNIKS 22245 Single End V-Flange Collet Chuck, Tapered Shank, ER25 Collet System, ER25 Chuck

ManufacturerTECHNIKS

Part #162122245

MFG #22245

TECHNIKS Collet Chuck, Single End V-Flange, 6.68 in Overall Length, 3.87 in Shank Length, 1.654 in Nose Dia, 4 in Head Length/Projection, ER25 Collet System, Tapered Shank, ER25 Chuck, CAT40 Taper, 1.65 in Collet Nut Dia, Yes Through Coolant (Yes/No)

$194.17

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Techniks Tool Group

Chuck Size: ER25

Collet Nut Diameter: 1.65 in

Collet System: ER25

Country of Origin: TW

Head Length/Projection: 4 in

Manufacturer Name: TECHNIKS INDUSTRIES, Techniks Tool Group

Nose Diameter: 1.654 in

Overall Length: 6.68 in

Shank Length: 3.87 in

Shank Type: Tapered

Taper Size: CAT40

Through Coolant (Yes/No): Yes

Type: Single End V-Flange

PowerCOAT Slotted Nut

For drilling, milling and high speed applications

Collet chucks are balanced to 25000 rpm at G2.5 tolerance
They are individually lab tested for accuracy and balance and come with their individual performance report
Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket
PowerCOAT nut included for 75% more clamping power
