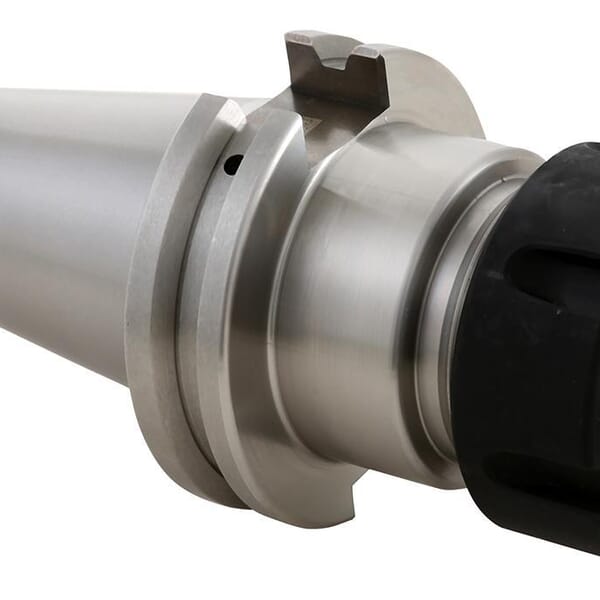

TECHNIKS 22235 Single End V-Flange Collet Chuck, Tapered Shank, ER20 Collet System, ER20 Chuck

ManufacturerTECHNIKS

Part #162122235

MFG #22235

TECHNIKS Collet Chuck, Single End V-Flange, 5.44 in Overall Length, 2.63 in Shank Length, 1.339 in Nose Dia, 2.76 in Head Length/Projection, ER20 Collet System, Tapered Shank, ER20 Chuck, CAT40 Taper, 1.38 in Collet Nut Dia, Yes Through Coolant (Yes/No)

$178.19

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Techniks Tool Group

Chuck Size: ER20

Collet Nut Diameter: 1.38 in

Collet System: ER20

Country of Origin: TW

Head Length/Projection: 2.76 in

Manufacturer Name: TECHNIKS INDUSTRIES, Techniks Tool Group

Nose Diameter: 1.339 in

Overall Length: 5.44 in

Shank Length: 2.63 in

Shank Type: Tapered

Taper Size: CAT40

Through Coolant (Yes/No): Yes

Type: Single End V-Flange

Collet chucks are balanced to 25000 rpm at G2.5 tolerance
They are individually lab tested for accuracy and balance and come with their individual performance report
Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket
PowerCOAT nut included for 75% more clamping power

PowerCOAT Hex Nut

For drilling, milling and high speed applications
