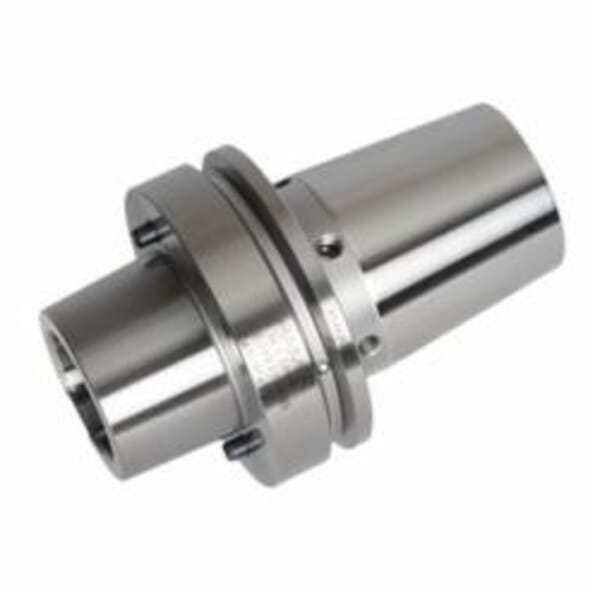

Haimer F80M.145.1/4Z Makino Standard Ultra Short Shrink Fit Chuck, Tapered Shank, HSK-F80 Machine Side, For Use With Shrink Fit Units, HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer F80M.145.1/4Z Makino Standard Ultra Short Shrink Fit Chuck, Tapered Shank, HSK-F80 Machine Side, For Use With Shrink Fit Units, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129504115

MFG #F80M.145.1/4Z

UPC #4034221086372

Haimer Shrink Fit Chuck, Standard Ultra Short, Series: Makino, System Size Machine Side: HSK-F80, 1/4 in Hole Dia, Tapered Shank, 0.826 in Nose Dia, 76.2 mm Projection, For Use With: Shrink Fit Units, HSS and Solid Carbide Tools, 1.063 in Body Dia Workpiece Side, 1.417 in Clamping Length, Yes Through Coolant (Yes/No)

$457.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 1.063 in

Clamping Length: 1.417 in

Hole Diameter: 1/4 in

Nose Diameter: 0.826 in

Projection: 76.2 mm

Series: Makino

Shank Type: Tapered

Suitable For Use With: Shrink Fit Units, HSS and Solid Carbide Tools

System Size Machine Side: HSK-F80

Through Coolant (Yes/No): Yes

Type: Standard Ultra Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force, dampen vibrations
Less than 3 micron T.I.R
All functional surfaces fine machined
With thread for coolant tube
Equally suited to high speed manufacturing and heavy milling
Highest cutting performance with higher spindle speeds, higher feeds and larger cutting depths
Shorter cycle times
Quieter running, therefore better surface quality and protection of cutting tools, machine spindles and machines
Higher machining accuracy
Heat resistant hot working steel
Hardened 54-2 HRC
H6 shank tolerance
With bores for Balluf-Chip
Snap ring groove

Back-Up Screw

DIN 69893-6

Back-Up Screw

Catalog

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 1.063 in

Clamping Length: 1.417 in

Hole Diameter: 1/4 in

Nose Diameter: 0.826 in

Projection: 76.2 mm

Series: Makino

Shank Type: Tapered

Suitable For Use With: Shrink Fit Units, HSS and Solid Carbide Tools

System Size Machine Side: HSK-F80

Through Coolant (Yes/No): Yes

Type: Standard Ultra Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force, dampen vibrations
Less than 3 micron T.I.R
All functional surfaces fine machined
With thread for coolant tube
Equally suited to high speed manufacturing and heavy milling
Highest cutting performance with higher spindle speeds, higher feeds and larger cutting depths
Shorter cycle times
Quieter running, therefore better surface quality and protection of cutting tools, machine spindles and machines
Higher machining accuracy
Heat resistant hot working steel
Hardened 54-2 HRC
H6 shank tolerance
With bores for Balluf-Chip
Snap ring groove

Back-Up Screw

DIN 69893-6

Back-Up Screw

Catalog
