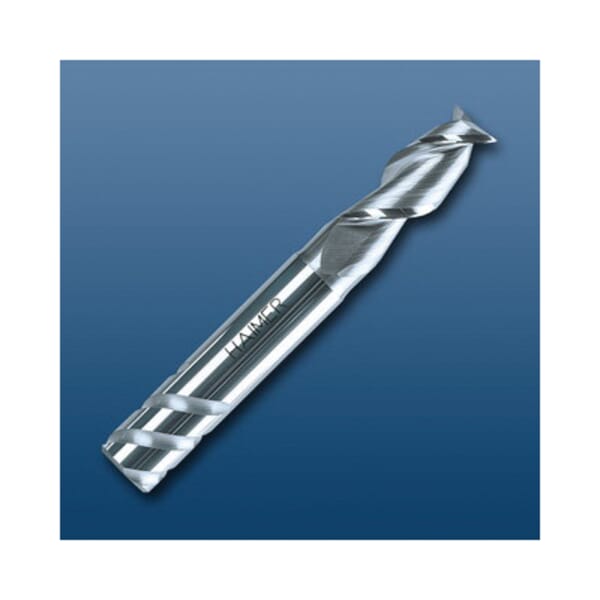

Haimer F4002NNL1600CA- Center Cutting Power End Mill, 16 mm Dia Cutter, 0.16 in Corner Radius, 32 mm Length of Cut, 2 Flutes, 16 mm Dia Shank, 93 mm OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer F4002NNL1600CA- Center Cutting Power End Mill, 16 mm Dia Cutter, 0.16 in Corner Radius, 32 mm Length of Cut, 2 Flutes, 16 mm Dia Shank, 93 mm OAL

ManufacturerHaimer

Part #129504053

MFG #F4002NNL1600CA-

Haimer Power End Mill, Center Cutting, Series: F4002NN, 16 mm Diameter Cutter, 0.16 in Corner Radius, 93 mm Overall Length, 32 mm Length of Cut, 2 Flutes, 16 mm Shank Diameter, 41/43 deg Helix Angle, Safe-Lock Shank, 48.5 mm Shank Length, Solid Carbide

$214.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Corner Radius: 0.16 in

Cutter Diameter: 16 mm

Helix Angle: 41/43 deg

Length of Cut: 32 mm

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 93 mm

Series: F4002NN

Shank Diameter: 16 mm

Shank Length: 48.5 mm

Shank Type: Safe-Lock

Type: Center Cutting

H5 shank tolerance
Less than 1 gmm fine balanced
Less than 5 um runout
Neck for higher cutting depth
Optimal chip removal with cool flash

For feed direction, 45 deg ramping, slotting, side milling, drilling, roughing and finishing of aluminum
