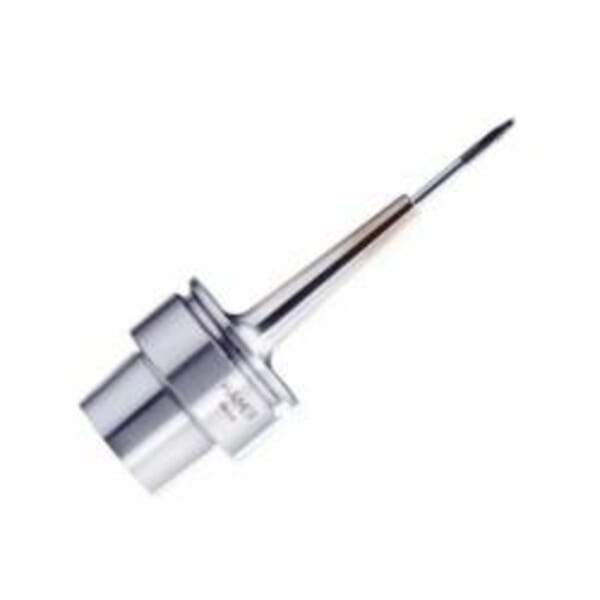

Haimer E40.183.12 Reinforced ZG80 Mini Shrink Fit Chuck, Tapered Shank, HSKE40 Machine Side, For Use With Shrink Fit Units, Power Clamp and Solid Carbide Tools

ManufacturerHaimer

Part #129503779

MFG #E40.183.12

UPC #4034221040756

Haimer Mini Shrink Fit Chuck, Reinforced ZG80, System Size Machine Side: HSKE40, 12 mm Hole Dia, Tapered Shank, 18 mm Nose Dia, 80 mm Projection, For Use With: Shrink Fit Units, Power Clamp and Solid Carbide Tools, 48 mm Clamping Length, No Through Coolant (Yes/No)

$501.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 48 mm

Hole Diameter: 12 mm

Nose Diameter: 18 mm

Projection: 80 mm

Shank Type: Tapered

Suitable For Use With: Shrink Fit Units, Power Clamp and Solid Carbide Tools

System Size Machine Side: HSKE40

Through Coolant (Yes/No): No

Type: Reinforced ZG80

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
More accurate than DIN
3 mm wall thickness
Slim design
No disturbing edges
High runout accuracy
Also jobs difficult-to access are penetrable
Optimum rigidity
For all solid carbide tools with shank tolerance h6
With 3 deg slope for dies and molds
High clamping forces
Tool holders fine balanced

DIN 69893-5
