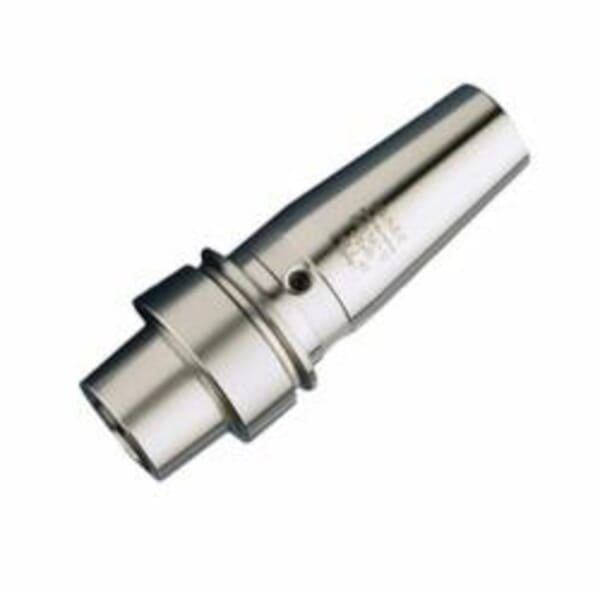

Haimer E40.140.08.26 Standard Short Shrink Fit Chuck With Cool Flash, Tapered Shank, HSK-E40 Machine Side, For Use With Shrink Fit Units, HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer E40.140.08.26 Standard Short Shrink Fit Chuck With Cool Flash, Tapered Shank, HSK-E40 Machine Side, For Use With Shrink Fit Units, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129503722

MFG #E40.140.08.26

Haimer Shrink Fit Chuck, Standard Short, System Size Machine Side: HSK-E40, 8 mm Hole Dia, Tapered Shank, 21 mm Nose Dia, 80 mm Projection, For Use With: Shrink Fit Units, HSS and Solid Carbide Tools, 27 mm Body Dia Workpiece Side, 36 mm Clamping Length, No Through Coolant (Yes/No)

$624.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 27 mm

Clamping Length: 36 mm

Country of Origin: DE

Hole Diameter: 8 mm

Manufacturer Name: Haimer

Nose Diameter: 21 mm

Projection: 80 mm

Shank Type: Tapered

Suitable For Use With: Shrink Fit Units, HSS and Solid Carbide Tools

System Size Machine Side: HSK-E40

Through Coolant (Yes/No): No

Type: Standard Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
More accurate than DIN
Heat resistant hot working steel
Hardened 54-2 HRC
H6 shank tolerance
Without back-up screw, without threads for balancing screws, with slits along the clamping bore for cooling from outside
High runout accuracy
Dynamic form, reinforced shank at long tool holders, compromise between slimness (marginal interference contour) and rigidity
Threaded bores for simple and fast balancing with screws
Extreme clamping torque by high pressing in the clamping bore

DIN 69893-5

Catalog

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 27 mm

Clamping Length: 36 mm

Country of Origin: DE

Hole Diameter: 8 mm

Manufacturer Name: Haimer

Nose Diameter: 21 mm

Projection: 80 mm

Shank Type: Tapered

Suitable For Use With: Shrink Fit Units, HSS and Solid Carbide Tools

System Size Machine Side: HSK-E40

Through Coolant (Yes/No): No

Type: Standard Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
More accurate than DIN
Heat resistant hot working steel
Hardened 54-2 HRC
H6 shank tolerance
Without back-up screw, without threads for balancing screws, with slits along the clamping bore for cooling from outside
High runout accuracy
Dynamic form, reinforced shank at long tool holders, compromise between slimness (marginal interference contour) and rigidity
Threaded bores for simple and fast balancing with screws
Extreme clamping torque by high pressing in the clamping bore

DIN 69893-5

Catalog
