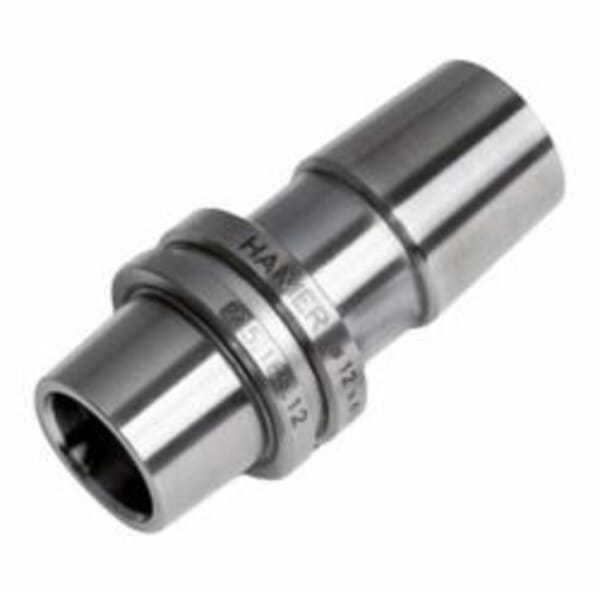

Haimer E25.180.03 Short Mini Shrink Fit Chuck, Tapered Shank, HSKE25 Machine Side, For Use With Inductive Shrink Fit Units

ManufacturerHaimer

Part #129503647

MFG #E25.180.03

UPC #4034221068804

Haimer Mini Shrink Fit Chuck, Short, System Size Machine Side: HSKE25, 3 mm Diameter Hole, Tapered Shank, 9 mm Diameter Nose, 45 mm Projection, For Use With: Inductive Shrink Fit Units, 15 mm Clamping Length, No Through Coolant

$450.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 15 mm

Hole Diameter: 3 mm

Nose Diameter: 9 mm

Projection: 45 mm

Shank Type: Tapered

Suitable For Use With: Inductive Shrink Fit Units

System Size Machine Side: HSKE25

Through Coolant (Yes/No): No

Type: Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
More accurate than DIN
No disturbing edges, also jobs difficult-to access are penetrable
Highest runout accuracy Less than 3 µm
Ideal to shrink with the Haimer power clamp nano

DIN 69893-5
