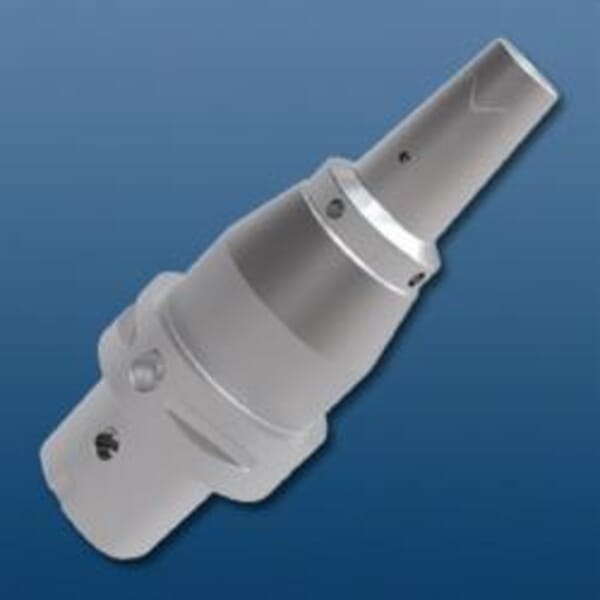

Haimer CC6.145.12.36 Ultra Short Power Shrink Fit Chuck With Cool Flash, Modular Connection Shank, Capto C6 Machine Side, For Use With Inductive Shrink Fit Unit, Turning and Milling Centre

ManufacturerHaimer

Part #129503571

MFG #CC6.145.12.36

UPC #4034221089403

Haimer Power Shrink Fit Chuck, Ultra Short, System Size Machine Side: Capto C6, 12 mm Diameter Hole, Modular Connection Shank, 26.5 mm Diameter Nose, 65 mm Projection, For Use With: Inductive Shrink Fit Unit, Turning and Milling Centre, 46 mm Clamping Length, Yes Through Coolant

$1,131.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 46 mm

Hole Diameter: 12 mm

Nose Diameter: 26.5 mm

Projection: 65 mm

Shank Type: Modular Connection

Suitable For Use With: Inductive Shrink Fit Unit, Turning and Milling Centre

System Size Machine Side: Capto C6

Through Coolant (Yes/No): Yes

Type: Ultra Short

Back-Up Screw

Balanced to G2.5 at 25000 rpm or ULess than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces precision ground
More accurate than DIN
Interface with a unique tapered polygon and flange location face
Exact positioning in the circumferential direction
Highest runout accuracy, torque and rigidity
Innovative modular tool system with highest precision
Standard with cool jet
Dirt groove in the clamping bore for safe clamping force

Back-Up Screw
