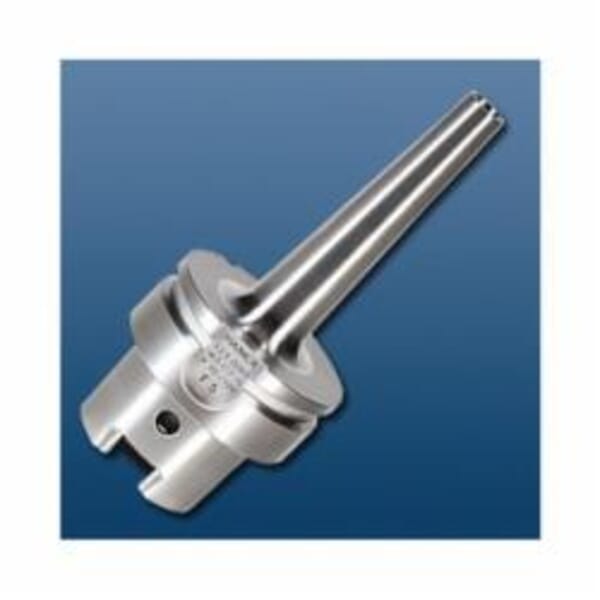

Haimer A63.177.08 Extra Slim ZG120 Mini Shrink Fit Chuck, Tapered Shank, HSKA63 Machine Side, For Use With Shrink Fit Units, Power Clamp, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129503270

MFG #A63.177.08

UPC #4034221048738

Haimer Mini Shrink Fit Chuck, Extra Slim ZG120, System Size Machine Side: HSKA63, 8 mm Hole Dia, Tapered Shank, 11 mm Nose Dia, 120 mm Projection, For Use With: Shrink Fit Units, Power Clamp, HSS and Solid Carbide Tools, Yes Through Coolant (Yes/No)

$477.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Country of Origin: DE

Hole Diameter: 8 mm

Manufacturer Name: Haimer

Nose Diameter: 11 mm

Projection: 120 mm

Shank Type: Tapered

Suitable For Use With: Shrink Fit Units, Power Clamp, HSS and Solid Carbide Tools

System Size Machine Side: HSKA63

Through Coolant (Yes/No): Yes

Type: Extra Slim ZG120

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
More accurate than DIN
1.5 mm wall thickness
Extremely slim for fine machining and for jobs very difficult-to reach
No disturbing edges
Highest runout accuracy 3 µm
Also jobs difficult-to access are penetrable
Optimum rigidity
For all solid carbide tools with shank tolerance h6
With 3 deg slope for dies and molds
Tool holders fine balanced
High clamping forces

DIN 69893-1
